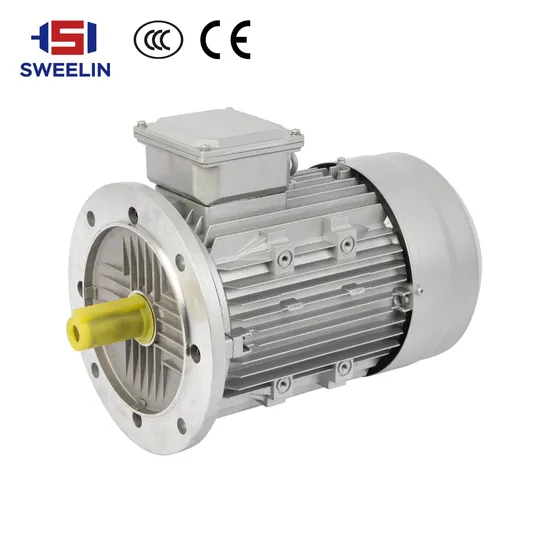

CE-Certified Three-Phase Asynchronous Noodle Grinding Machine Sealing Machine Electric Motor

Product Description

Motor model	YE3 series three-phase asynchronous motor
texture of material	aluminum shell
Installation method	B5
power	1HP-10HP
Applicable scope	Three-phase asynchronous motor aluminum shell vertical can be applied to various mechanical equipment such as water pumps, lathes, oil pumps, mixers, etc.

Who are we? Taizhou Su Lin Mechanical & Electrical Co., Ltd. is located in Wufeng Industrial Park, Daxi Town, Wenling, Zhejiang province. Adjacent to Yongtaiwen high-speed G15, China National Highway 104, 18 km from the Taizhou Luqiao Airport, 2 km from the railway station, the traffic is very convenient. Is a set design, production, sales, service integration of the new enterprise. Has many years of production YY series fan, JY, Ye2, YC, YL, YCL, YS Experience, has a perfect motor automatic computer testing line, Advanced Manufacturing, assembly line, specializing in the production of Dinyi brand series motor products. Products through the national compulsory product CCC certification, Export European Union CE safety certification The company produces a complete range of motors, a variety of varieties, advanced design, well-chosen materials, advanced technology and unique, with excellent performance and the use of safe, reliable, durable and other advantages, products sell well throughout the country and exported to all world countries , customers at home and abroad to the praise. The company regards human resources as the basis of development of the enterprise, attention to customer needs, customer service, to build the industry brand. With our strong human capital and continuous innovation, we can create a comfortable and quiet environment for maintaining the eternal health of human beings. The company adheres to the "quality first, customer first" principle to provide customers with quality service, welcome new and old customers to visit, guidance and business negotiations.
Power parameters

TYPE	POWER(KW)	SPEED(r/min)	Rated Current(A)	η(%)	Power Factor cos	Ist/In	Tst/Tn	Tmax/Tn
YE3-80M1-4	0.55	1390	1.57	71	0.75	5.2	2.4	2.3
YE3-80M2-4	0.75	1390	1.88	82.5	0.76	6	2.3	2.3
YE3-90S-4	1.1	1400	2.67	84.1	0.77	6	2.3	2.3
YE3-90L-4	1.5	1400	3.48	85.3	0.79	6	2.3	2.3
YE3-100L-4	2.2	1430	4.9	86.7	0.81	7	2.3	2.3
YE3-100L2-4	3	1430	6.5	87.7	0.82	7	2.3	2.3
YE3-112M-4	4	1440	8.56	88.6	0.82	7	2.3	2.3
YE3-132S-4	5.5	1440	11.5	89.6	0.83	7	2.3	2.3
YE3-132M-4	7.5	1440	15.3	90.4	0.84	7	2.3	2.3
YE3-80M1-2	0.75	2910	1.7	80.7	0.83	6.1	2.2	2.3
YE3-80M2-2	1.1	2910	2.4	82.7	0.84	7	2.2	2.3
YE3-90S-2	1.5	2910	3.2	84.2	0.84	7	2.2	2.3
YE3-90L-2	2.2	2910	4.73	85.9	0.85	7	2.2	2.3
YE3-100L-2	3	2910	6.19	87.1	0.87	7.5	2.2	2.3
YE3-112M-2	4	2915	8.05	88.1	0.88	7.5	2.2	2.3
YE3-132S1-2	5.5	2920	10.9	89.2	0.88	7.5	2.2	2.3
YE3-132S2-2	7.5	2920	14.7	90.1	0.88	7.5	2.2	2.3

Product Description YE3 Three-phase Electric Motor are made of high-quality materials and conform to IEC standard. Which has good performance with low noise and little vibration. It is safe and reliable in operation, and can be maintained very conveniently.
1.YE3 Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high quality material and are conform to the IEC standard in function, appearance, output and other requirements.
2.The efficiency of YE3 motor meets IEC standard in E. U., and can reach the IE3 standard if requested. YE3 motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.
3.YE3 motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for YE3 motor.
4.YE3 motor is suitable for common working environment and machinery without special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines etc.
Factory real shots
FAQ:
Q1. Do you accept OEM order?
Yes, OEM Brand aluminum electric motor asynchronous induction motor are acceptable.
Q2. What's your payment terms?
We accept T/T(50% down payment and 50% paid before delivery), Pay pal, Western union, and Money Gram.
Q3. What's the minimum order quantity? How long is the delivery time?
Both MOQ and delivery time need to refer to the specific products. Usuall we deliver the motors in 10-45 days, please
contact our sales for details.
Q4. What's the way of transportation?
Express, air and ocean shipments are all available.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
B. With more than 15 years experience in this filed, we have the ability to provide good service and products in low cost
C. Adequate inventory to make sure that our clients can obtain goods in a short period.
