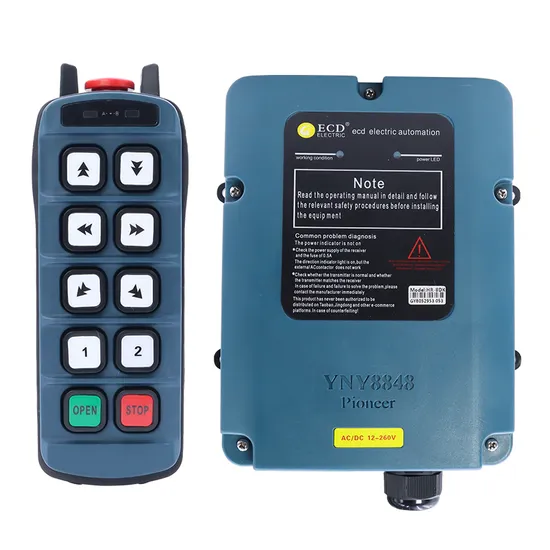

Safe and Reliable Hr-8dk 8 Double Speed Butttons Overhead Crane Forklift Hoist Lifting Winch Radio Handle Industrial Wireless Remote-Control

Product Description

INDUSTRIAL REMOTE CONTROL HR-8DK: 10-buttons Strong penetrating power Whether it's powering on/off or action commands, it can quickly respond and enjoy the convenience of wireless control. Product Parameters

Model	HR-6DK	HR-8DK	HR-10DK	HR-12DK
Button	6 double speed buttons	8 double speed buttons	10 double speed buttons	12 double speed buttons
Protection level	IP68
Corrosion protection grade	WF2
Transmit power	≤10MW
Rated power of receiver	≤6MW
Response time	≤20MS
Channel spacing	25HZ
Moulation mode	GFSK
Signal transmission rate	9600BIT/S
Signal reception sensitivity	-115DBM
Function customization	Accepted
OEM/ODM	Accepted
Working humidity range	0~97%RH
Adaptive temperature	-40°C~+85°C
Button life	12 million times
Shell material	PA66+ high quality fiber
Transmitter supply voltage	DC 1.8-3.6V
Receiver supply voltage	AC/DC 12V-65V AC/DC 65V-440V
Transmitting frequency	315MHZ/433MHZ/868MHZ/915MHZ
Remote control distance	225 Meters/Can be customized to 5km

Product Description

Product Description
1. Stable Signal and Strong Penetration The signal is stable and penetrating, and can work normaly in complex environments. 2. IP68 Waterproof Waterproof and dustproof, it can be used normally in harsh environments such as high oil pollution and high temperature. 3. Emergency Stop Pressing the red button emergency stop device meets user's safety requirements. 4.Dual Speed Button The two-speed button is pressed once for low speed and twice for fast speed.The combination of fast and slow gives you more choices. 5. Circuit Board High specification circuit board, improted chip keypad, strictly tested, quality assurance. 6.Pure Copper Cable With high purity copper conductors and connection ports.
Our Advantages
1. Designed with a battery voltage warning device, it automatically shuts off the circuit when the voltage is insufficient.
2. Adopting intelligent wireless technology to design circuits, with strong penetration and signal fearless interference.
3. The remote control casing is made of PA66 and high-quality fiber, which is one-time die-cast, comfortable to touch, and resistant to falling and pressure.
4. The remote control relay adopts the American brand TE, which is a leader in the relay field, with over 14000 global technology patents and decades of experience in relay development and production, ensuring excellent product quality.
5. The main chip of the remote control adopts Texas Instruments (TI) and South Korean ABOV brands, providing customers with high energy efficiency, ultra stable, and ultra safe semi conductor solutions and product services. It adopts a low-power design method and can be used normally for up to one month.
6. The remote control button adopts the world-renowned Alpine brand, with a unique structure, optimized materials, advanced technology, comfortable touch, and long service life. The embedded parts, base parts, spring parts, button parts, and cover parts of the button all use the best materials and processing technology to ensure the overall quality of the button, ensuring a service life of 12 million times, sensitive contacts, and quick response.
7. The remote control transistor adopts the Japanese brands of RENESAS and ROHM. As a leading manufacturer of microcontrollers and analog power devices worldwide, RENESAS and ROHM have taken the forefront in product solutions and system solutions.
Customisable Sections
1. L0G0 Customization
LOG0 styles can be designed and formulated according to customer needs.
2. Button Customization
Button icons are available in a variety of styles for customers to choose from and can be customized as needed.
3. Function Customization
The number of buttons, single and double speeds, and some functional requirements can be customized.
4.Control Distance Customization
The standard control distance of the product is 225 meters in open areas. Longer remote control distances can be customized according to needs.
5. Linkage Customization
One transmitter can be customized tocontrol multiple receivers according to customer needs, or multiple transmitters can control one receiver. Applications Scenarios

Focus on Every Detail Convergent, atmospheric, simple design, PA66 material body forming. Reasonable layout of emergency stop, start keys and function keys, Ergonomic design fits the shape of the human hand. With the industrial remote control system, workers can hold the portable transmitters on hand, walk freely and choose the best position to operate. lt makes the working environment be safer, reduces the injury accidents and saves manpower cost during the operation. With remote control, the operator can finish various tasks independently, which will improve the working efficiency. Aplication of Industrial Remote Control lt can be used in most fields. At present, the ECD remote control system is mainly used in eight fields: lifting machinery, construction machinery, port machinery, engineering machinery, industrial customization, agricultural and forestry machinery, computer numeri-cal control machine tools, explosion-proof machinery, and special vehicles, such as cranes, engineering machinery, lifting platforms.travelling vehicles, hydraulic equipment, automobile tail boards,break down trucks, conveyor belts, industrial equipment androbots. Packaging & Shipping
