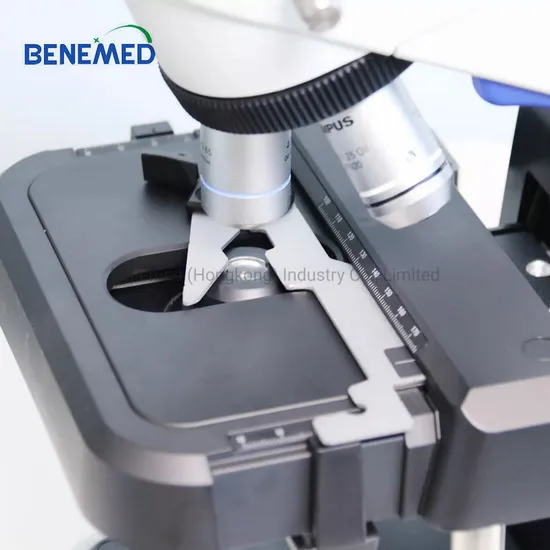

Olympus Microscope Cx23 with LED Light Source Binocular Original
| US$1,250.00-1,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CX23
Magnification
4X,10X,40X,100X
Type
Biological
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Fluorescence
Shape
Rectangular Prism
Usage
Teaching, Research
Principle
Optics
Principle of Optics
Differential Interference Contrast Microscope
Materia
Aluminum Die-Casting Metal Frame
Transport Package
Carton Box
Trademark
BENEMED
Origin
China
HS Code
8486402900
Production Capacity
10000
Product Description
Olympus microscope CX23 with LED light source Binocular Original| Model | CX23 |
| Body | Aluminum die-casting metal frame, Protective covering |
| Optical System | Infifi nity optical system |
| Illumination System | Built-in transmitted illumination system, LED Power Consumption 0.5 W (nominal values) |
| Focusing | Stage height movement (coarse movement stroke: 15 mm), coarse adjustment limit stopper, Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjustment gradations: 2.5 µm) |
| Revolving Nosepiece | Fixed quadruple nosepiece |
| Stage | Wire movement mechanical fifi xed stage Traveling range: 76 mm (X) x 30 mm (Y), Specimen holder, Specimen position scale |
| Observation Tube | 30º inclined binocular tube Interpupillary distance adjustment range: 48 - 75 mm, Eyepoint adjustment: 370.0 - 432.9 mm |
| Objectives | Plan achromat, anti-fungus 4x NA: 0.10 W.D.: 27.8 mm 10x NA: 0.25 W.D.: 8.0 mm 40x NA: 0.65 W.D.: 0.6 mm 100xOil NA: 1.25 W.D.: 0.13 mm (CX23LEDRFS1 only) |
| Optional Accessories | Reflfl ection mirror (CH20-MM), 15x eyepiece (WHSZ15X-H: FN 12, anti-fungus), Dedicated wooden case, Eyepiece micrometer, Darkfifi eld stop (CH2-DS+CH2-FH) |
