Hydra Pulper for Waste Paper Pulping

Product Description

Product Description:

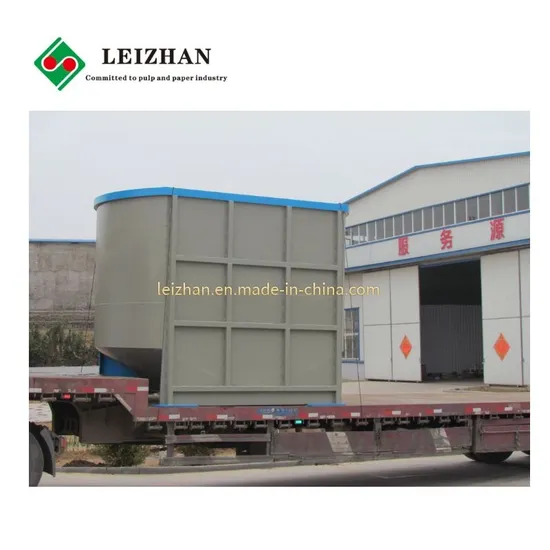

The D-type hydrapulper is mainly used for shredding all kinds of pulp board, damaged paper and all kinds of waste paper.Its main features are: the volks rotor off-center position, so that the paper and the rotor contact faster, higher frequency.A conventional hydrapulper produces an unimpeded swirl in which the paper moves from the entry point to the central rotor in a spiral path.The D-type hydrapulper changes this flow mode to make the paper contact with the rotor more quickly, which can shorten the time from the paper to the shredder and improve the production capacity without increasing the power and volume.
Feature:
1. Pulper rotor off -center position, so that the waste paper could touch the rotor more quick, higher frequency. 2. The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet.
3. Pulper rotor and pulp tray is higher than pulper groove bottom plane, which can reduce the pulper rotor and impurities contact, so that prolong life-span, preventing the twisted rope winding on the rotor.
Advantage:
This machine can promptly crushing waste paper, with large capacity, low power consumption, and saving vapour medication. And it is easy to maintain, with long service life, low noise, and the vibration is not strong, in stable operation, also it can save energy.
Technical parameters:

Type	ZDSD23	ZDSD24	ZDSD25	ZDSD26	ZDSD27	ZDSD28	ZDSD29
Nominal Volume(m 3 )	5	10	15	20	25	30	35
Concentration(%)	3-5
Production capacity(t/d)	30-50	40-90	80-120	140-180	180-230	230-280	270-320
Motor power(Kw)	75	110	160	185	220	280	315

Type	ZDSD30	ZDSD31	ZDSD32	ZDSD33	ZDSD34	ZDSD35	ZDSD36	ZDSD37
Nominal Volume(m 3 )	40	45	50	60	70	90	120	140
Concentration(%)	3-5
Production capacity(t/d)	300-370	350-400	400-450	460-550	550-650	650-800	800-1000	1000-1200
Motor power(Kw)	355	400	450	560	630	900	1100	1250

About Us:
LEIZHAN INTERNATIONAL GROUP is specialized in the design, manufacture and sales of paper machinery and its spare parts. We located in Jiangsu,founded in 2002.The Group currently employs 400 people, including about 60 special product development teams, including product designers, product engineers, and so on. As a professional manufacturer, the group focuses on the pulp and paper industry, has sophisticated CNC machining equipment,complete product testing methods, advanced ability of project designing, researching and developing, processing and manufacturing of products. We provide customers with the best quality machinery and equipments. Our team and engineers can provide designing plans according to the customers' needs and budgets of the project to retrench the project investments, to easy the operation of the project and to quick the effects. Also,we can send experienced engineers to guide the installations for the customers and to solve customers' worries.
Customer's satisfaction is our goal !

Work Shop:
Products exported to the United States, Brazil, Mexico, Indonesia, Malaysia, Bangladesh, India, Thailand, Ethiopia, Algeria, Egypt, Turkey, belarus, Estonia, Pakistan, uzbekistan and other countries.Our enterprises and products have established a good image in the international market.Sincerely hope we can pleasant cooperation!
Contact me to have more details about "hydrapulper" !
