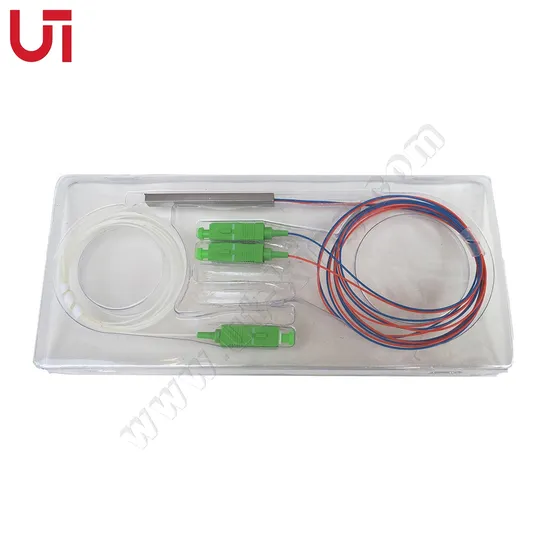

Ut-King Mini Type Fiber Optic G657A11X2 with Sc APC Connector PLC Splitter
Basic Info.
Number of Cores
Single-Core
Ferrule Endface
APC
Shape
Strip
Fabrication Process
Injection Molding
Application
Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE
Fiber
Connector Type
SC-APC
Brand
OEM
Return Loss
50dB
Insertion Loss
0.3dB
Fiber Type
G657A1
Operating Wavelength
1260nm-1650nm
Mode
Singlemode/Multimode Optional
Product Name
Sc PLC Optical Splitter
Length
1.5m or Customized
Transport Package
Carton
Origin
China
Production Capacity
1000000/Day
Product Description
Mini Type Fiber optic PLC Splitter 1x2 with SC APC connectorPODUCT FEATURES
Low IL and PDL High reliability High channel counts Wide wavelength range Large operating temperature range Excellent Environmental & Mechanical Stability
APPLICATION FTTX (FTTP, FTTH, FTTN, FTTC) Local Area Networks (LAN) Test Equipment CATV Analog/Digital Passive Optical Networks (PON) SPECIFICATION
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | ||
| Fiber Type | SMF-28e or customer specified | |||||||
| Operating Wavelength (nm) | 1260~1650 | |||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.2 | 13.3 | 16.2 | 20.5 | |
| Max | 4.0 | 7.4 | 10.5 | 13.5 | 16.9 | 21.0 | ||
| Loss Uniformity (dB) | Max | 0.5 | 0.7 | 1.0 | 1.4 | 1.8 | 2.0 | |
| Return Loss (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 | |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 | |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.8 | 0.5 | 0.8 | |
| Temperature Dependent Loss (-40~85 ºC) (dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | |
| Operating Temperature (ºC) | -40~+85 | |||||||
| Storage Temperature (ºC) | -40~+85 | |||||||
| Packaging Size (mm) | Fan-Out | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 80x20x6 | 80x20x6 | |
2×N PLC splitter
| Port Configuration | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Fiber Type | SMF-28e or customer specified | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
| Loss Uniformity (dB) | Max | 1.0 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Temperature Dependent Loss (-40~85 ºC) (dB) | Max | 0.5 | 0.5 | 0.8 | 0.8 | 1 | |
| Operating Temperature (ºC) | -40~+85 | ||||||
| Storage Temperature (ºC) | -40~+85 | ||||||
| Packaging Size (mm) | Fan-Out | 60x7x4 | 80x12x4 | 80x12x4 | 80x20x6 | ||
