Rtb-25-K High Accuracy Automatic Processing CNC Machine

Product Description

RTB-25-K Valve Sealing Surface Numerical Control Tool Machine for stainless steel and bronze gate valves
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
Suitable for 1/2 "to 3"stainless steel and bronze gate valve sealing surface processing.
Two power head around the machine work at the same time, a clamping can finishmachining, the operation is simple, save work easier.
Adopts feed of guangzhou nc GSK928TEA system,driven by servo motor, can alsoaccording to user naed to install other numerical control system.
Two pairs adopted in production, a processing valve body, a valve plate processing.assembly, each other can achleve accuracy standard body lumen is protected.
Product Parameters

ltem		Parameter
Capability		1/2"~3" $tainless steel and bronze gate valve body and disk
Number ofspindle		2Spindles
Processing materia		Brass
Production efficiency		15~30s/pcs
Spindle speed		360-1400rpm
Travel	Z axle	<<200mm
	X axle	<<12mm
Control systerm		GSK928TEACNC.system
Type of clamp		pneumatic
Spindle drive mode		Servo motor
Motor power		2.2Kw/4px2
power supply		AC380V/50HZ:3PhaseAC380V/50HZ
Total power		S.5Kw
Dimension		2400mmx1350mmx1750mm
Weight		2800kg

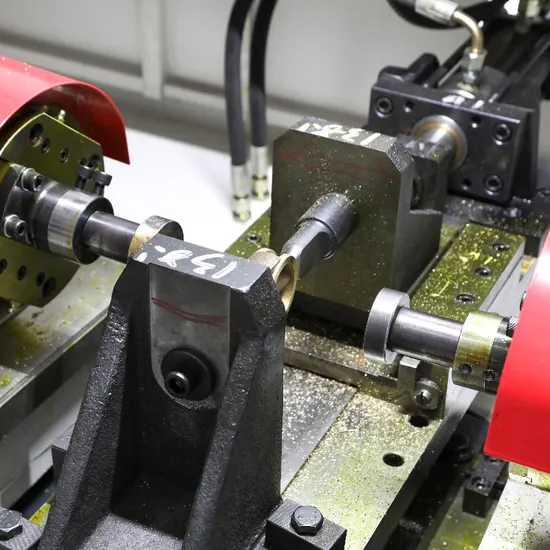

Detailed Photos
hot selling product
https://haochenmachine.en.made-in-china.com/product/cnlYTLtVvSpK/China-High-Accuracy-Cylindrical-Automatic-CNC-Lathe-Valve-Processing-Machine.html?pv_id=1ifcjh36k95e&faw_id=1ifcjh45hd2d
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
