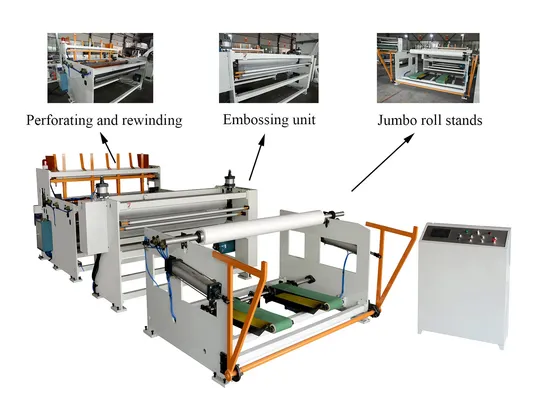

Lowest Price Production Line of Paper Rewinding Machine

Product Description

The machine adopts the wall panel type, the man-machine interface operation is adopted in the control system , the programmable controller (PLC) control with stable performance.
1. Adopt PLC programmable controller to control the production process, main motor frequency control.
2. Man-machine conversation, easy operation with high efficiency. Machine stop when raw paper broke.
3. Jumbo Roll Paper is pneumatically uploaded onto machine, with unwinding web tension control device
4.The rewinding process of the product is tight first and loose afterward, with its tension adjustable. Automatic changing paper roll, rewinding, tail cutting and sealing, then finished log auto unloading.
5. Bearing, electric component and synchronous belt use famous brand.
Main technical parameter Machine Actual production speed: 60-80m/min m/min Diameter of Winding: 100-130mm Jumbo roll rag width:2000mm Jumbo roll rag diameter: 1200mm Jumbo roll rag request: Double layers 13-20 g/m² ;Single layer 20-40 g/m² Machine power: 10.3KW Machine Overall size(L*W*H) :7200*2650*1900mm Huaxun machinery is a factory and specialize infield of household paper converting machine for more than twenty years, with good quality and pretty competitive price. The company can keep informed on market trends and needs, and meet the varies demands from customers. We are looking forward to having a sincerely cooperation with people all over the world, and seize new opportunity to create new values.
