Vmc550 Vmc650 Vmc850 Vmc1160 Vmc1270 Vmc1370 Vmc1890 Vmc1890 OEM ODM 3 Axis 4 5 Axis CNC Milling Machine Horizontal Vertical CNC Machining Center Bt40 Bt50 Vmc

Product Description

Product Description
Vmc550 650 850 1160 1270 1370 1160 1890 OEM ODM High Quality Vmc3 axis 4 Axis 5 Axis Universal CNC Vertical Horizontal CNC Machining Center Machining BT40 BT50 4 5 axis cnc milling machine manufacturer 650 550 vertical machining center pirce SMC650 Most Popular 3 axis VMC CNC Vertical Machining Center SMC8650
(VMC from small to big size, the web pages are limited, so please contact us for more details)

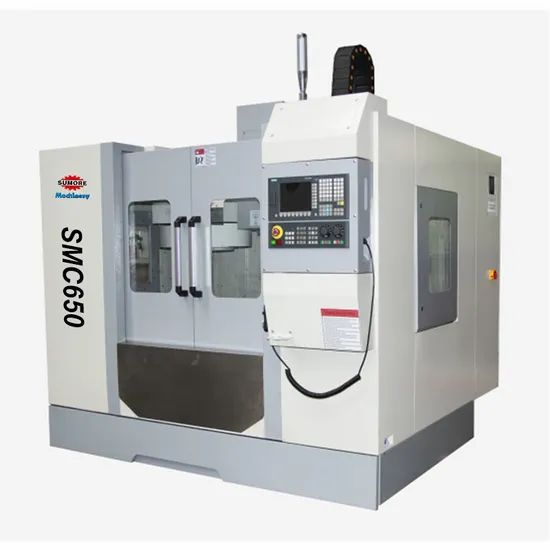

SMC650 cnc vertical machining center belongs to one of our most economic cnc machining center for heavy duty field. The motor power is 5.5 kw even more, Spindle taper is BT40 or customized. It can load 500kgs work piece. It is quite new condition not used cnc machine center. This vmc machine is made in China. The main features are as below:1.The struction of the precision being connected with automatic lubrication device.2.Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.3.The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure4.Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping5.All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining accuracy.6.Taiwan spindle/ball screw/ bearing is available.7.X/Y/Z linear guide way is available.8.Ultimate 10000rpm spindle speed is available9.Portable hand wheel10.OEM or ODM is available.11.Customized color and voltage or LOGO.
12.China top one quality and good after sale service.
Product Parameters

specifications	SMC8650
Travel X(mm)	650
Y	400
Z	500
Spindle nose to table(mm)	100-600
Spindle center to column(mm)	410
Table dimension(mm)	900*360
Max .load(kg)	500
T-slot width(mm)	14
T-slot number	3
Taper	Bt40
Spindle speed(r.p.m)	8000
Main motor(kw)	5.5
X(Nw)	8
Y(Nw)	8
Z(Nw)	11
Control system	KND
X Y Rapid feed(mm)	28000
Z Rapid feed (mm)	14000
Cutting speed(mm/min)	1-10000
Positioning accuracy(mm)	±0.006
Repeatability accuracy(mm)	±0.003/300
Air pressure (kg/cm²)	≥6
Tool changer	16
Machine weight(t)	3
Machine size (mm)	2500*2250*2250

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
