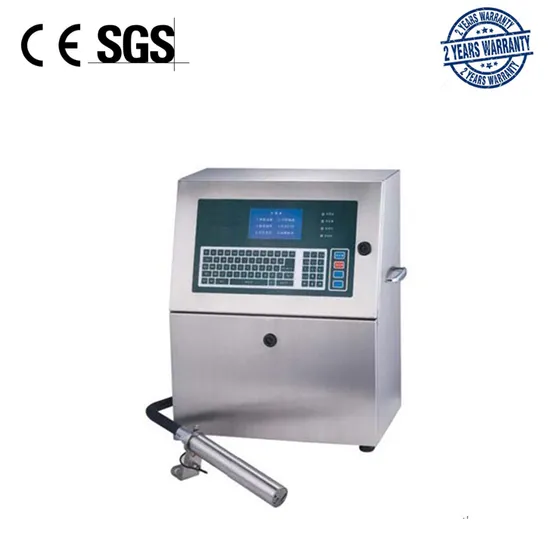

AC-2001e Panel Inkjet Printing Machine

Product Description

AC-2001E Panel Inkjet Printing Machine
1. It adopts the international advanced technology of built-in valvo-pump and integrates the ink pump, solvent pump, recovery pump and circulating pump. No external gas supply is needed. Fully automatic procedure. The printing material consumed is only 10-20% of traditional gas supply printers.
2. The intelligent "self-awakening" mixing function keeps the pigment ink in best status.
3. International advanced control technology of ink concentration and viscosity, which is free from the influence of factors such as ambient temperature and startup time, makes the printer more stable and more reliable.
4. Unique tripe anti-blocking technology of nozzle and separate auto cleaning procedure thoroughly solves the problem of blocking...
5. Various ink system treatment procedures and failure alarm display function make the printer more stable and more convenient for maintenance.
6. Anti-abrasion stainless steel shell, IP55 protection standard. Unique positive pressure wind of nozzle prevents the invasion of dusts and water. It can be used in any harsh environments.
Technical Parameters
1 Font lattice: 7X6, 7X8, 8X12, 12X12, 16X16, 24X8, 5X5
2 Printing lines: 1-3 lines can be adjusted
3 Font height: 2-15MM can be adjusted
4 Printing speed; 1.5m/s, (single line 7X6 )
5 Printing direction; All round adjustment
6 Font widening; Maximum 9 times
7 Printing content: English letters, Arabic numerals, pictures and literatures
8 Printing format: Different layout of batch number of product, serial number, total amount, Chinese and English, picture and literature, auto continuous printing, delay printing, positive direct, negative direction and reverse printing etc.
9 English character library, direct lattice editing for printing, synchronous editing and printing
10 Disorder printing when connected to computer and anti-fake function required by customer
11 Functions of online metering, synchronous coding, synchronous photoelectricity, synchronous distance of synchronizer, online inspection of printing of N times.
12 Power: 50W
13 Power supply: 220V± 10%VAC, 50Hz
14 Ambient temperature: 5-40° C
15 Ambient humidity: 10%-90%RH(No dew condensation)
16 Dimension: 585X470X270mm
17 Weight: 32KG
18 Shell Stainless steel

Model	AC-2001E
lattic range	7×5, 7×9, 10×7, 16×16, 16×24, 24×24
print lines	Max 3(7× 5)
letter height	1.5-15mm
voltage	110-220v/50-60hz
dimension	420× 210× 600mm
weight	35Kg
