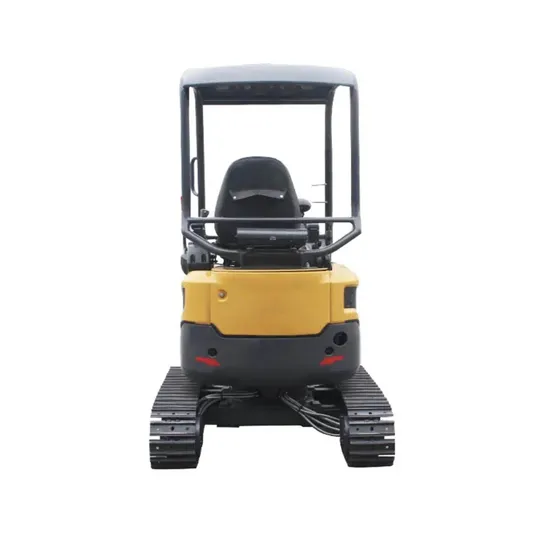

China Xuzhou Manufacture Crawler Excavator Xe15u 1.5t Mini Crawler Excavator
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
XE15U
Condition
New
Transport Package
Container
Specification
3560*1240*2350
Trademark
Top Brand
Origin
China
Production Capacity
1000
Product Description
Product DescriptionXE15U,featuring high efficiency and energy conservation,is mainly used for earth working conditions.The powerful Kubota D782 engine and hydraulic system are matched perfectly,which can guarantee the product reliablity and define high-efficiency operation and fuel economy.With strengthened structural parts,it is applicable for earth working,road construction and municipal engineering,and allow you to get digging and loading operations done easily.
Product Parameters
| SPECIFICATION OF XE15U MINI CRAWLER CRANE | ||
| Item | Unit | Parameter Value |
| Model | - | XE15U |
| Operation Performance Parameter | ||
| Operating weight | kg | 1795 |
| Bucket capacity | m³ | 0.04 |
| Min. tail swing radius | mm | 620 |
| Max. digging height | mm | 3475 |
| Max. dumping height | mm | 2415 |
| Max. digging depth | mm | 2290 |
| Fuel tank capacity | L | 18 |
| Hydraulic tank capacity | L | 17 |
| Engine Parameter | ||
| Model | - | D782-ET05 |
| Engine Rated power/speed | kw/rpm | 9.8 |
| Maximum torque/speed | N.m | 44.5/1500 |
| Displacement | L | 0.778 |
| Dimension Parameter | ||
| Crane Full Dimension(L×W×H) | mm | 3560×1240×2350 |
| Length of boom | mm | 1690 |
| Length of arm | mm | 1100 |
| Track length | mm | 1578 |
| Speed Parameter | ||
| Travel speed(H/L) | km/h | 4.3/2.2 |
| Gradeability | ° | 30 |
Detailed Photos
