Subminiature Relay Hf157f Power Control Relay
| US$1.50-2.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
157F
Electricity Type
Dc
Number of Pole
1
Load
Medium Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Coil Voltage Form
DC, AC
Coil Voltage
DC: 12, 100, 110, 48, 36, 60, 24, 5, 6 AC: 120, 11
Contact Arrangement
2 From C, 1 From C
Contact Version
Single Contact
Transport Package
Tube, Carton
Specification
29X13X30
Origin
China
HS Code
8536690000
Production Capacity
1000000PCS/Year
Product Description
| Type | HF157F |
| Coil voltage form | DC,AC |
| Coil voltage | DC: 12, 100, 110, 48, 36, 60, 24, 5, 6 AC: 120, 110, 230, 12, 115, 48, 220, 240, 24, 6, 60 |
| Contact arrangement | 2 From C, 1 From C |
| Contact version | Single contact |
| Terminal type | QC |
| Mounting | Socket |
| Construction | Flux proofed |
| Coil power | Standard |
| Sort | Single side stable |
| Contact capacity | AgSnO2In2O3 |
| Insulation standard | F |
| Parallel coil components | DC: With LED, With LED and diode(Power 1 pin to - pole), With LED and diode(Power 1 pin to + pole) AC: With LED |
| Contact endurance | With button type, Without button type |
| Packing method | Plastic packing |
| Rated voltage(V) | 250VAC,30VDC |
| Coil power | Approx 0.53 |
| Dielectric strength (between coil & contacts) (VAC 1min) | 5000VAC 1min |
| Operate time(ms) | ≤15 |
| Release time(ms) | ≤10 |
| Coil resistance(Ω) | Need to fill in respectively |
| Creepage Distance(mm) | 10.1 |
| Electrical Distance(mm) | 5.9 |
| Insulation resistance(MΩ) | 1000 |
| Max. switching Current(AC) | 16:1Z 10:2Z |
| Max. switching Current(DC) | 16:1Z 10:2Z |
| Max. switching voltage(VAC) | 250 |
| Max. switching voltage(VDC) | 30 |
| Ambient temperature (max)(ºC) | -40 |
| Ambient temperature (min)(ºC) | 70 |
| Mechanical endurance min | 30000000:AC Coli 50000000:DC Coli |
| Electrial eddurance min | 100000 |
| Contact gap | ≥0.35 |
| Product Description | Miniature intermediate power relay |
| Application | Automatic control field |
| Typical application | Instrument,Machine tool equipment,Electrical cabinet |
| Weight(g) | 22:Without button type 23.5:With button type |
| Volume(mm³) | 29×13×30:Without button type 29×13×35.5:With button type |
| Product approval | UL,CUL,TUV,CQC |
| File No. | E133481,R50403813,CQC18002189443 |
High capacity ( 2 pole: 10 A)
Various types available
2 pole configurations
5kV dielectric strength
(between coil and contacts)
Sockets available
Environmental friendly product (RoHS compliant)
Outline Dimensions: without button:29.0mm x13.0mm x29.0mm
with button: 29.0mm x13.0mm x34.5mm
The dielectric strength can reach 4000VAC(I/O), and the insulation resistance is 1000MΩ

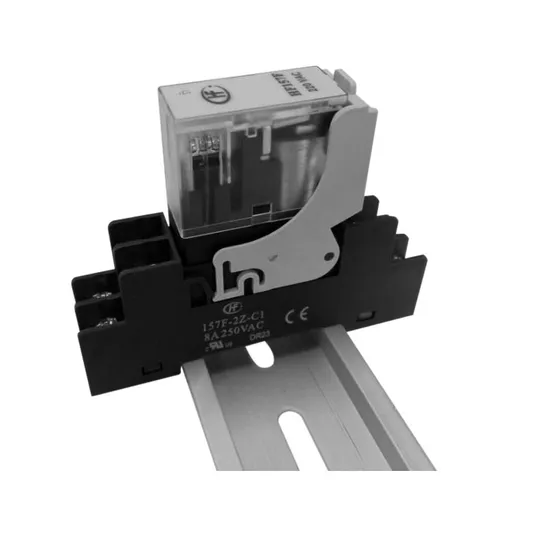

Two mounting types are available: screw mounting and DIN rail mounting.
Components available: plastic retainer (Collocation marker), metallic reainer.
Coil voltage form: DC,AC
