Hot Sale Budget Hydraulic Metal Steel Sheet Plate Rolling Machine Price for Sale Manufacturers

Product Description

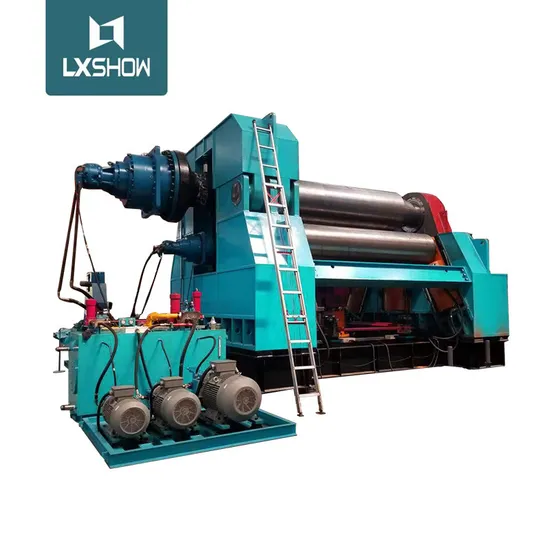

The plate rolling machine is a four-roll plate rolling machine, which is used to bend and roll metal plates of a certain thickness into tubular, curved or certain taper parts at normal temperature. Its working principle is rotary bending deformation. Because the side rollers on both sides can be tilted up and down, and the lower rollers can be lifted and lowered, there is no need to add additional equipment such as presses, and the pre-bending and forming bending functions of both ends of the plate can be completed without turning, and the correction of the formed workpiece can be used. With the help of the auxiliary device, the end of the plate can be aligned, and the remaining straight edge is less. It is an essential equipment for machinery and equipment manufacturing industries such as petroleum, chemical, cement, shipbuilding, boiler, aviation, water conservancy, and wind tower.
Product Parameters

W12YCNC-30×2500
Working Condition	Cold rolling
Work Environment	Ambient temperature: -15-+45°C; Relative Humidity 90%
Working System	8 x 3 hours continuous work every day
Power Allocation	Nc weak current AC220±5%, 50HZ; Overall power: three-phase AC AC380±5%
Apply Pressure to The Upper Roll	230tons
Type of Drive	Upper and lower roller hydraulic motor drive
Maximum Plate Width	2500mm
Working Length of Roller	2600mm
Coil Capacity	Symmetrical winding:T30×B2500×Φ1200(σs≤245 MPa)
	Asymmetric winding:T25×B2500×Φ1000(σs≤245 MPa)
Prebend the Remaining Straight Edge	Twice the plate thickness
Roll Quality	Roundness ≤4mm, straightness ≤1mm/m, The wrong side of the end face is less than 3mm
Minimum Coil Thickness	5mm
Upper Roll Diameter	430mm
Lower Roll Diameter	400mm
Side Roll Diameter	330mm
Work Roll Material	42CrMo
Work Roll Heat Treatment	HB260-300,HRC40-52
Coil Speed	Coil speed:0-4m/min Prebending velocity:0-2m/min
Main Motor Power	30kW
Maximum Working Pressure of Hydraulic System	20Mpa
Control System	Compatible with manual/automatic modes

Main Parts
Lifting Screw AssemblyScrewTurbo AssemblyReducerElectronic Control System (Siemens)Hydraulic System
Advantages
1.The four-roll plate rolling machine is controlled by the button, the unloading is convenient and fast, and it is also much safer than the three-roll plate rolling machine.
2.The four-roll plate rolling machine is pre-bent by lifting the side roller, and the speed is very fast, especially the advantages of the plate under 20 mm are more obvious
3.When the four-roll plate rolling machine is feeding, the system control and positioning are accurate by lifting the side roll as the ruler, which also makes it realize the numerical control and has the function of one-key round winding.
Application

Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit

Our Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:In order to recommend a more suitable machine for you, please tell me:
1. The material you want to roll
2. Material thickness and width
3. Minimum roll diameter. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, if you have any questions, you can contact us any time, 24x7, we always here.
