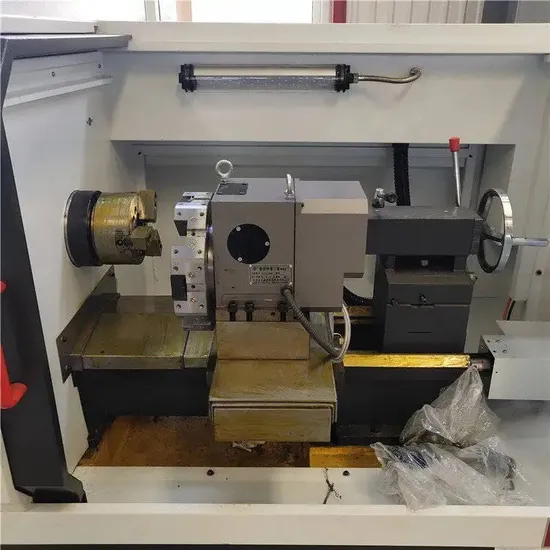

Small Precision Automatic Feeding Ck0640 Flange Special Instrument Lathe
| US$3,500.00-3,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK0640
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Self-Lubrication System
Domestic Gear Pump
CNC System
GSK
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Standard Chuck
Maunal Chuck
Optional Chuck
Hydraulic Chuck
Transport Package
Seaworthy Packing
Specification
1700*1200*1650mm
Trademark
JT
Origin
China
HS Code
84589100
Production Capacity
1500sets/Year
Product Description
Product ParametersThe CK0640 digital control lathe has several significant advantages compared to traditional CNC lathes:
Precision Machining, Flange Specialized: CK0640 CNC lathe, designed specifically for precision instrument flange machining, ensuring high accuracy and stability.
Automated Efficiency Enhancement: Equipped with an automatic feeding system, enabling efficient continuous processing and injecting new momentum into production efficiency.
Versatile Applications: Suitable for various precision instrument flange machining tasks, including threading, hole drilling, and more, meeting diverse production needs.
Overall, the CK0640 digital control lathe offers clear advantages over traditional CNC lathes in terms of precision, efficiency, automation, adaptability, and data-driven management. It is a key equipment widely applied in modern manufacturing industries.
| ITEM | 0640 |
| CNC system | GSK |
| Swing over bed | 270mm |
| Max. rotation diameter of the support plate | 120mm |
| X-axis Max. strok | 560mm |
| Z-axis Max. strok | 200mm |
| X-axis rapid traverse speed | 6000mm/min |
| Z-axis rapid traverse speed | 6000mm/min |
| Spindle through-hole | 48mm |
| Spindle head specifications/taper | A2-5 |
| Main motor power | 4kw |
| Spindle speed | 50-3000rpm |
| Tool holder form | Four-position tool turret |
| Tool handle specification | 20*20mm |
| Quasi compact mode | Pneumatic |
| X-directiong motor torque | 4 Nm |
| Z-directiong motor torque | 4 Nm |
| X/Z motor connection method | Direct connection |
| Repetitive positioning accuracy | 0.001mm |
| External dimensions of machine tools | 1700*1200*1650mm |
| Net weight of machine tool | 900kg |
