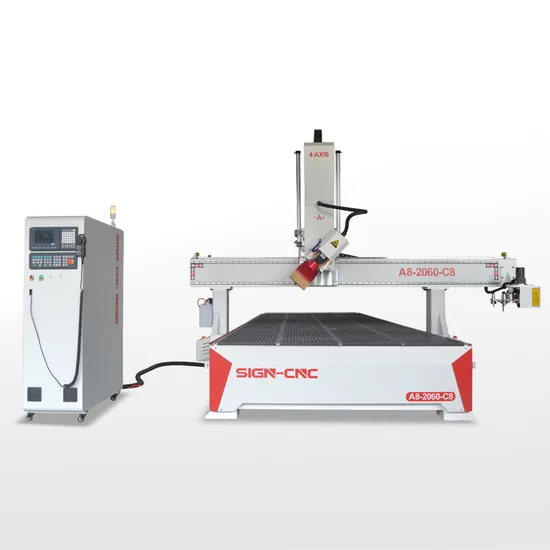

2060 Big Size A8-2060-C8 Wood Router for Wood Cutting and Engraving
Basic Info.
Spindle Layout
Vertical
Spindle Number
Single-Spindle
Controlling Mode
CNC
Certification
CE
Customized
Customized
Condition
New
Color
Red
Product Name
Wood CNC Router
Spindle Power
9 Kw Hqd Air Cooling Spindle
Working Table
Vacuum Table with T-Slot
Working Table Size
2000*6000mm
Max. Moving Speed
45000 mm/Min
Max. Working Speed
30000 mm/Min
Vacuum Pump
5.5 Kw
Inverter
Detal 11 Kw Inverter
Motor
Syntec 1000W Servo Motor
Control System
Syntec 6mA/6MB
Rails and Racks
25 Guide Rail and Helical Racks
Reducer
Japan 750W
Transport Package
Wooden Case
Specification
2000*6000mm
Trademark
SIGN CNC
Origin
Jinan City, Shandong Province, China
Product Description
Product Description2060 big size A8-2060-C8 wood router for wood cutting and engraving
Detailed Photos
Product Parameters
| Model | A8-2060-C8 |
| Working area | 2000*6000mm |
| Z feeding | 400mm |
| Frame structure | Steel casting-welding |
| Type of table cover | Vacuum table with T-slot |
| Vacuum pump | 5.5kw air cooling |
| Z axis transmission | Ball screw and 25 square guide rails |
| X Y axis transmission | 25 square guide rails + Helical rack |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Command Code | G code * .u00 * .mmg * .plt |
| Operating voltage | AC 380V/50Hz |
| Spindle power | HQD 9.0 KW |
| Spindle rotate | Left and right 180 degree |
| Tool Magazine | 8 - 12 |
| Type of cooling | Air cooling |
| Spindle Speeds | 0-24000rpm/min |
| Drive motor type | Syntec 1000w servo motor with drivers |
| operating system | Taiwan SYNTEC 60WE |
| Dust Collector | 3kw with double bags |
| Lubrication system | Automatic |
| Supported software | Artcam software, Type3 software |
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree |
| Warranty | Two years |
Certifications
Application and Sample
Packaging & Shipping
