China Plastic Waste Recycling Machinery Manufacturers for Bottle Film

Product Description

china plastic waste recycling machinery manufacturers for bottle film

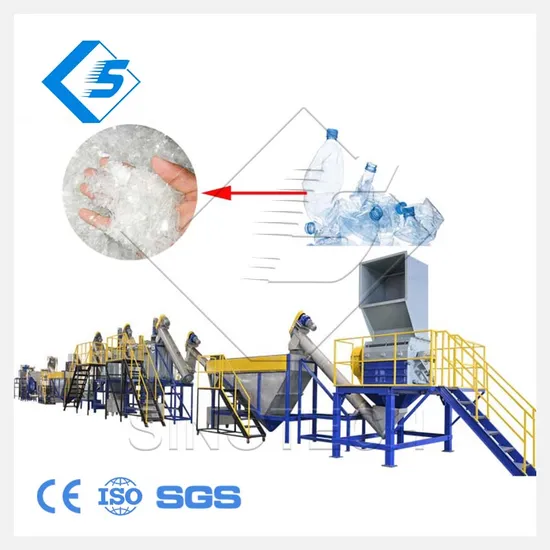

PET bottle flakes washing line PET bottle recycling line
Flakes recycling system:
Plastic Pet Bottle Flakes Recycling Line/Washing Machine Also we call it PET bottle washing machine. PET Bottle washing system. PET flakes washing system.
No.
Name Quantity (set)
1 Belt conveyor
2 Bale opener
3 Belt conveyer
4 Label remover
5 Horizontal sorting table
6 Metal detector
7 Belt conveyor
8 Crusher
9 Screw loader
10 Floating washer1( pre-washing)
11 Screw loader
12 Hot washer
13 Screw loader
14 Friction washer
15 floating tank
16 floating tank
17 Dewatering machine
18 Drying system
19 Cyclone silo (include system)
20 Electrical control cabinet
It is mainly for PET materials' washing and cleaning. PVC and some other plastics are also can be washed by this line. The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation. It adopts hot water washing to get good quality. Various output capacities can be chosen: 300KG/H, 500-600kg/h, 1000kg/h, 1500kg/h and 2000kg/h.
The recycling line can easily crush, wash and pelletize wasted plastic products From beginning to finished products. Waste and dirty agricultural films and Waste packing material or rigid plastics can be treated step by step by this machine.
PET Plastic Bottle RECYCLING MACHINE
Process flow:
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

Any question,please call me.
