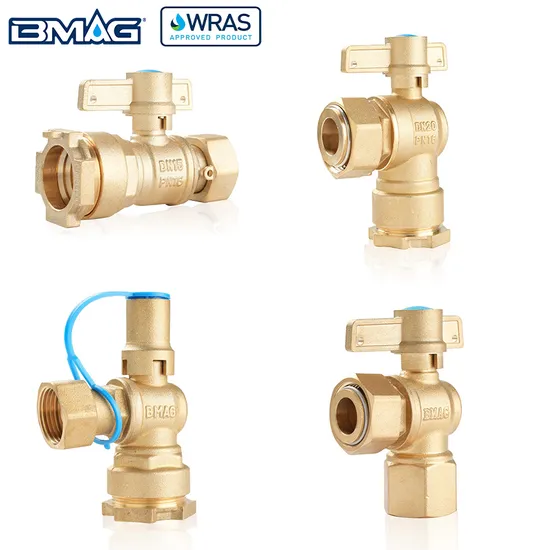

Bmag Wras Forging Body Brass Water Meter Lock Ball Valve with Lockable Handle
Basic Info.
Model NO.
BW-L02A
Connection Form
Thread
Driving Mode
Hydraulic
Nominal Pressure
Pn1.6MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Control
Temperature
Normal Temperature
Standard
ISO Standard
Application
Water Industrial Usage
Product Name
Lockable Ball Valve
Lock Material
Zinc
Size
1/2" to 2"
Working Pressure
1.6MPa
Test Pressure
0.6MPa to 0.8MPa
Medium
Water, Oil, Gas
Working Temperature
-20deg to 150deg
Thread Type
Bsp or NPT
Transport Package
Standard Export Carton and Pallet
Specification
1/2" to 2"
Trademark
Ningbo bestway
Origin
China
HS Code
8481804090
Production Capacity
100, 000 PCS/Month
Product Description
BMAG OEM & DOM WRAS Forging Body Brass Water Meter Lock Ball Valve With Lockable Handle Product Description| Description: BBrass Magnetic Lockable Ball Valve/ Brass anti-theft Ball Valve/Brass Lockable Ball Valve consists of forged brass body, chromed brass ball and chromed magnetic lock and plastic or brass key. 1. Ball Valve functioning as an isolating valve. 2. Lock securing the valve's operating mechanism. 3. Key for releasing the lock from the valve Size: 1/2"~2"(DN15-DN50) Standard: BS1400 Material: Brass (CZ122, CuZn39Pb3 and so on) Technical Specification: Working pressure: 1.6Mpa Tested Pressure: 2.0Mpa Working medium: Water, oil, gas Working temperature: -20° C≤ T≤ 150° C Thread: BSP & NPT thread. |
Lockable ball valve is a tamper-proof valve that is designed with a double-locking system, made of brass. Once secured, a special key is needed to unlock the valve.
We also have many other lockable ball valves for your your selection.
Company Profile
FAQ
In order to quote you the best price timely, please kindly provide the following information in your inquiry:
1) Product details: dimensions
2) Order quantity
3) Attached drawings if customized
4) Any special packing, delivering or other requirements
If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.
