Product Description

Distillation Apparatus-Distillation Tester-Oil Distillation Apparatus-Petroleum Distillation Apparatus

TR-TC-6536 Distillation Apparatus

Summary:
This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.

Main technical features:
1. This instrument is desktop structure. The design is reasonable. It is easy to use.
2. It adopts a special heating furnace to ensure the safety. The heating power can be adjusted
continuously.
3. The rising up and lowering down of distillation flask can be adjusted free by lifting device.Flexible and
convenient to operate.

II. Main technical specifications
1. Power supply: AC(220±10%)V, 50Hz
2. Heating power: 1000W,continuous adjustment
3. Receiving cylinder: 100ml,scale division 1ml
4. Distillation flask: 125mL. It can meet requirements GB/T 6536 and ASTM D86
5. Thermometer: (-2~300)ºC and (-2~400)ºC. Division value 1ºC
6. Flask support board: SiC,diameter for each hole is φ32mm,φ38mm and φ50mm
7. Ambient temperature: Room temp.~+35ºC
8. Relative humidity: ≤85%
9. Maximum power consumption: 1100W
10.Dimension: 460mm×400mm×500mm

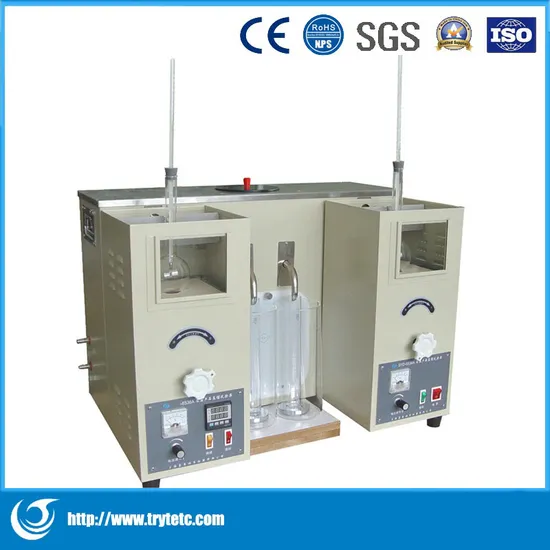

TR-TC-6536A Distillation Apparatus

Summary:
This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
This instrument is not only suitable to the organizations of high frequency with various of samples but also accelerate the test speed for common users. It is an ideal distillation tester for petroleum products.

Main technical features:
1.The instrument adopts double units working mode, can do test for one sample as well as two samples
which having the same specification or different specifications.It highly improves the work efficiency.
2.It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute
two constant temperature baths. Each bath temperature can be adjusted and controlled
independently.The temperature in the bath is uniform,can fully meet the requirements of test.
3.It adopts special heating furnace to ensure the safety of test. Heating power can be continuously
adjusted to meet the requirements of test.

Main technical specifications:
1.Power supply: AC(220±10%)V, 50Hz
2.Heating power: 1000W×2, continuously adjustable.
3.Receiving cylinder: 100ml, division value 1ml.
4.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86
5.Thermometer: (-2~300)ºC and (-2~400)ºC, division value 1ºC
6.Flask support board: SiC, bore diameter φ32mm, φ38mm, φ50mm.
7.Temperature controller: 1) Range: (Ambient +10)ºC~60ºC
2) Accuracy: ±0.5ºC
3) Display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
8.Ambient temperature: ≤35ºC
9.Relative humidity: ≤85%
10.Maximum power consumption: 2200W
11.Dimension:760mm×520mm×500mm

TR-TC-6536B Distillation Apparatus

Summary:
This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
This instrument is a kind of double-units instrument which the minimum temperature of the condenser pipe can reach 0ºC.It is an ideal distillation tester for petroleum products under low temperature condition.

Main technical features:
1.The instrument adopts low temperature and double units working mode. The minimum temperature can
set to 0ºC.It can do test for one sample or two samples at same time.It highly improves the work
efficiency.
2.It adopts digital temperature controller, stainless-steel heater, new type refrigeration compressor and
electric stirrer to constitute constant temperature bath. The temperature in the bath is uniform,can fully
meet the requirements of test.
3.It adopts special designed structure, cooling speed is fast.The bath temperature can cool down from
room temperature to 0ºC within 50 minutes.
4.It adopts special heating furnace to ensure the safety of test. Heating power can be continuously
adjusted to meet the requirements of test.

Main technical specifications:
1.Power supply: AC(220±10%)V, 50Hz
2.Heating power: 1000W×2.
3.Receiving cylinder: 100ml, division value is 1ml.
4.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86
5.Thermometer:(-2~300)ºC and (-2~400)ºC. Division value 1ºC.
6.Flask support board: SiC, bore diameter is: Φ32mm, Φ38mm, Φ50mm.
7.Temperature controller:1) Range: 0ºC~60ºC
2) Accuracy: ±0.5ºC
3) Display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
8.Ambient temperature: ≤30ºC
9.Relative humidity: ≤85%
10.Cooling system: New type refrigeration compressor
11.Maximum power consumption: 4000W
12.Dimension: 730mm×530mm×580mm
