Product Description

Animal Poultry Feed Production Line Sheep Cow Farm Equipment Feed Processing Machines Product Description
The pellet processing unit integrates crushing, mixing, and granulation. It has the characteristics of small floor space, high production efficiency, low configuration power, and labor saving, it can be used to make ANIMAL FEED. If produce the animal feed pellet, the raw materials suitable: Grain, grass...
For the full production line, we will custom it according to your budget, raw materials and other requirement. the crusher and pellet machine is different according to different requirements.
In order to let the pellet production line more accurate and suitable, we could confirm the final proposal together.
Specification

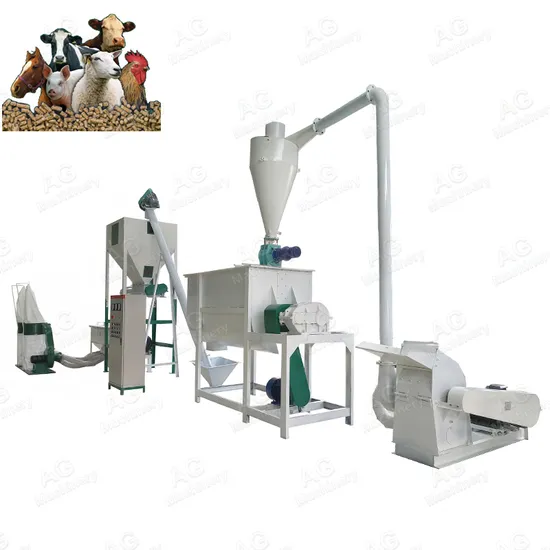

Technical Parameters of AG Mach poultry feed production line
No.	Product Name	Model	Power	Quantity
1.	Hammer Crusher With airlock	9FQ 500-40	22+0.75kw	1 set
2.	Horizontal Feed Mixer	WS-1000	7.5kw*2	1 set
3.	Screw Conveyor	LS-160-5	4kw	1 set
4.	Storage Silo & Screw Feeder	1.5m³	0.75kw	1 set
5.	Feed Pellet Mill	PM-400B	30kw	1 set
6.	Horizontal Cooler With dust collector	LQJ-70	5.15kw	1 set
7.	Belt Conveyor	QB-380	2.2kw	1 set
8.	Packaging Machine	DCS-50A	2.24kw	1 set
9.	Controller	BK-1	380V/ 50HZ	1 set

Production Process
Process of poultry animal feed pellet line:
* Flow Chart: Crushing --- Mixing--- Pelletizing--- Cooling --- Packaging;
* Raw materials: concentrated feed, forage, straw, grass, corn, grain, rice husk;
* Application: make feed pellets for dog, cat, cow, chicken, sheep, pig, rabbit, pigeon, broiler, duck, goose;
* Pellet size: 2.5~12 mm diameter;
Wood Crusher:
Hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. Our hammer mill is the special milling equipment for materials of < 50 mm (diameter),< 300 mm (length), such as tree trimmings, wood pieces, crop stalks, rice husk, cotton stalk, cottonseed skins and so on.
Feed Mixer
There are two kinds of type in Feed Mixer. One is horizontal feed mixer and crusher in one machine, it is fits in lower capacity.The other is vertical feed mixer. It is fits in high capacity.Feed Mixer machine put in a horizontal position, mixer with high effiency good quality, unloading quickly, less remain, adapt to the wide range, so far it is the most commonly used mixer.
Screw Conveyor
The working principle of the screw conveyor is that the rotating spiral blade will transfer the material. Material weight and screw conveyor shell of material friction resistance so that the material does not rotate with screw conveyor blade force.
Feed Pellet Machine
Pellet machines are widely used in feed factories, breed aquatics factories, organic fertilizer factories, chemical factory and China traditional medicine factories, etc. It can be used together with power material. Its capacity is superior in the same industry home and abroad. Now this animal feed pellet machine is mainly used to make feed pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.
Horizontal Cooler
This pellet cooler is base on the drum of rotary sieve which is made up of drum sieve and frame. On the adjustable speed system,the drum sieve is rotating on certain speed; the pellet is separated and cooled from top to bottom on the rotating of drum sieve.The fine powder is discharged from the front of drum sieve, and the good pellet is outlet from the back of drum sieve.
Packaging Machine
This machine adopts advanced microcomputer control processing technology, double-level laying-off control, which increases speed and accuracy, this machine is made of laying-off control devices, fixed bags and weighing control system. The part contacting with material adopts 304 stainless steel to improve corrosion resistance.
Detailed Photos
Raw material&Final Products
Suitable for processing different kinds of raw materials:
1. Cereals: soybean, maize,corn, grain, sorghum,corn flour, wheat flour, crop stalks (corn stalk, sorghum stalk, cotton, rape stalk, peanut seedling, sunflower stalk), chaff, grasses, shrubs;
2. Coarse fiber: wheat bran, corn stalk, soybean meal, grass meal, rice husk, grass, groundnut shell, cottonseed hull.
3. Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin.
Final different size feed pellet:
1. Diameter of final feed pellets: 2mm, 3mm. 4mm, 5mm. 6mm, 8mm, 10mm, 12mm etc.
2. Length of feed pellet: Adjustable.
