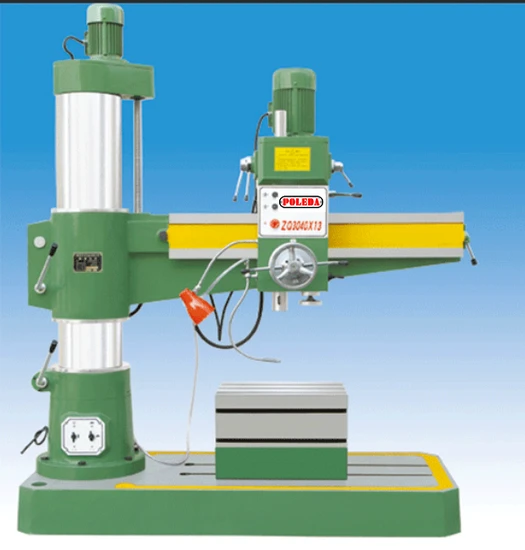

Z3040*13 Multi-Functional Mechanical Radial Drilling Machine with High Performance and High Efficiency

Product Description

Product Description
Rocker Arm Drill Product Introduction: Unveiling the ultimate in drilling technology, our Rocker Arm Drill stands as a paragon of efficiency and versatility, designed to offer unmatched performance in a multitude of machining operations.
Radial drilling machine is a revolutionary piece of hole processing equipment, expertly designed for various operations such as drilling, reaming, tapping, and face trimming. Perfectly suited for both single and mass production involving large, perforated parts, this machine is a staple in general machining workshops. Discover the exceptional features that make the radial drilling machine a must-have tool:
Structural Features: The innovative rocker arm design allows for smooth rotation and elevation around the column, while the spindle box glides horizontally, offering unparalleled convenience. This engineering marvel ensures flexibility and a broad application range for processing large and heavy workpieces with ease and precision.
Classification: Embrace the versatility of the radial drilling machine, classified by clamping structure into hydraulic and mechanical types. Further, based on drilling size and mechanical principles, the rocker arm drill diversifies into numerous models and specifications, each crafted to cater to unique processing demands with finesse.
Technical Parameters: Unlock the full potential of your machining capabilities with vital technical parameters such as maximum drilling diameter, spindle-to-column distance, and spindle speed. These factors culminate in a machine with exceptional machining capacity and efficiency, setting a new standard for operational excellence.
Safety Performance: Prioritizing safety above all, the radial drilling machine is equipped with advanced protective measures, including spindle overload protection, travel limit switches, and lifting screw safety nuts, ensuring every operation is conducted with the utmost security.
Application: Widely respected across various machining departments, the radial drilling machine excels in diverse applications including drilling, reaming, countersinking, tapping, and boring. Its indispensability in machining and production makes it a cornerstone of any modern workshop.
Operation and Maintenance: Versatile in operation, the radial drilling machine offers both manual and numerical control options, with mechanical and hydraulic transmission modes. Mastering proper operation and maintenance is crucial for maximizing machine performance and longevity.
In Summary: The radial drilling machine epitomizes multifunctionality, efficiency, and safety. Ideal for processing and producing a wide array of metal parts, it stands as an essential asset in modern machining workshops, delivering unparalleled results.
Product Parameters
Rocker Arm Drill Product Performance: Discover the innovative new series of radial drilling machines, praised for their stellar performance and user-friendly features. With hydraulic speed variations and intuitive controls, this machine ensures precision, reliability, and longevity, making it a trusted partner in any workshop.
Our radial drilling machine represents the pinnacle of multifunctional technology, boasting outstanding performance with a blend of safety, reliability, and ease of maintenance. Featuring hydraulic primary variable speed mechanisms, seamless spindle control, and robust hydraulic clamping, it ensures long-lasting accuracy and safety. Protective devices safeguard operations, making it a vital machine for precision machining.
Classified by machine tool clamping structure, the radial drilling machine is available in hydraulic and mechanical versions. Renowned for its operational convenience and dexterity, the hydraulic model is perfect for large-scale perforated parts, serving as a staple tool in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm

Detailed Photos
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
