Solar Inverter Inverters Converters 5kw 6kw 10kw 12V 220V 3000W 4000W

Product Description

Product Description
POWERFUL DC-AC:

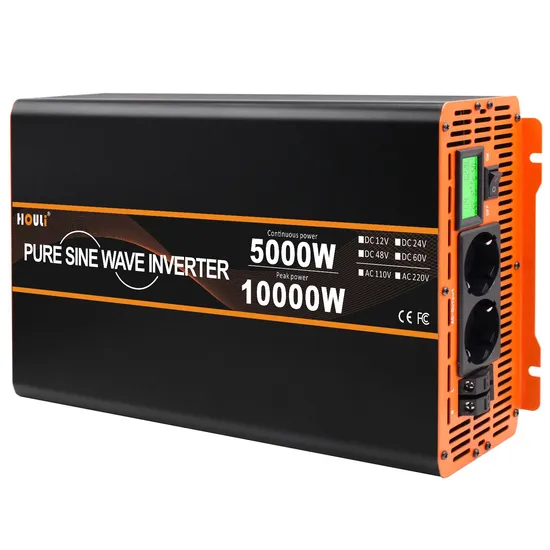

This power inverter 24V to 220V provides 5000W continuous DC to AC power, 10000W peak surge during load start-up, 24V to 220VAC pure sine wave with conversion efficiency >90%, reduces conversion loss
SAFE FOR USE:
LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication. Cooling funds and ground-fault circuit interrupter (GFCI) protection
PROTECT YOUR ELECTRONICS:
Advanced pure sine wave technology provides quality AC equivalent to grid power which will protect and extend the life of your electronics and appliances, such as flood light, TV, freezer, Laptop, tablet, etc. With its quiet and high inductive loads, the solar inverter operates with no buzzing sounds when your electronics are turned on and allows them to run smoother, cooler, and quieter
USER-FRIENDLY DESIGN:
Features a built-in 5V/2.1A USB port, 2 AC outlets, two 1/0AWG 3ft cables, and a 16.4ft wired remote for easy and user-friendly operation. NOTES: Power input should be a deep cycle battery of 80% discharge depth and above
RELIABLE QUALITY:
Etl certified product ensures safety and quality. Durable metal housing protects the 12v to 220v converter from bumps and impact. High-speed ventilation fans help keep the pure sine wave inverter running at a low temperature.
Product Description

Model	HPGL0050U
Input DC Voltage	24v/48v
Output AC Voltage	AC220V
Continuous Power	5000w
Surge Power	10000w
Waveform	Pure Sine Wave (THD<3%)
Efficiency	>90%
Frenquency	50HZ/60HZ+3HZ
Working temperature	0~70°C
Storage temperature	-30°C~+70°C

FQA How to choose an inverter?
1.Determine what the battery voltage is, and what is the capacity of the battery? If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry. Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.
2.What kind of electrical appliances can I bring? Electrical appliances are divided into resistive loads and inductive load appliances. Resisstive appliances: computers,televisions,fans,electric lights and other household appliances. Inductive appliances: refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc. Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times. Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance. However, the inductive load appliance has a starting power of 3-7 times, the continuous power meets the condition, and the starting power must also meet the conditions before it can be driven.
FOR EXAMPLE If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ? 1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W. 2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill. 3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W. The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter. Other appliances can also be judged by this method. Common problems and Solutions
Outside interference A: The frequency converter may be disturbed by some strong electromagnetic waves in use, such as the strong magnetic field of the nearby motor and power frequency converter, which will affect the use effect. Inverter does not respond 1.The connection between the battery and the inverter is incorrect, please re connect. 2. The polarity of the battery is reversed and the fuse is blown. Replace the fuse.
Low output voltage 1. Overload, load current exceeds rated current, turn off part of load and restart. 2. The input voltage is too low. Ensure that the input voltage is within the nominal voltage range. Low voltage alarm 1. The battery is dead and needs to be charged. 2. If the battery voltage is too low or the contact is poor, please charge the battery, check the battery terminal or clean the terminal with dry cloth No output of inverter 1. The battery voltage is too low, please recharge or replace the battery.
2. If the load current is too high, turn off part of the load and restart the inverter. 3. Inverter over temperature protection. Let the inverter cool down for a period of time and place it in a ventilated place. 4. If the inverter cannot be started, restart.
5. If the terminal is reversed and the fuse is blown, replace the fuse. Inverter does not work 1. Check the power switch, fuse, battery connection line or smoke.
If you have problems, do not understand the operation, you can also consult customer service, thank you!
