Aluminum Metal Roof Ridge Capping Making Machine

Product Description

Product Description

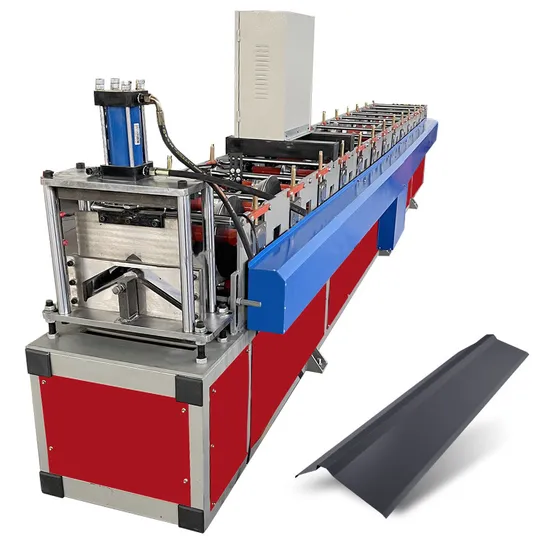

Cap Ridge Roof Forming Machine
The series of ridge cap roll forming machines are mainly used to make ridge capping. Ridge capping is a critical part of the structure of a roof. Ridge capping is placed along the peak of a roof to cover where the roof sheets meet. Roll-top ridge capping is a rolled product that is made to specific dimensions and cut to requested lengths. We manufacture both standard size ridge capping roll forming machines and customized roll forming machines.
Specifications
Suitable Raw Material Main Technical Parameters

Machine Specifications
Weight	About 4000kgs
Size	About 6m x 1.0m x 1.5m (length x width x height)
Color	Main color: blue
	Warning color: yellow
Material	PPGI and PPGL Coils
Thickness	0.3-0.8mm
Coil width	610mm
Yield Strength	235Mpa
Diameter of forming rollers shafts	55mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 4kw
	Hydraulic unit motor power: 2.2kw
Electric voltage	According to customer's requirement

Packaging & Shipping
simple plastic film protection, loaded in container independently, keep safty handle to client.
Company Profile
√. WADJAY factory is located in Hebei, China. The factory has a complete set of machines and equipment for processing services.
√. The company is committed to controlling the entire production process and providing you with the best quality and after-sales service.
√. Professional operation management team with experienced engineering and technical personnel.
√. One of the global manufacturers of high quality and excellent customer service.
√. More than 10 years of machinery production experience.
√. The company's products are exported to more than 50 countries and regions around the world.
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories.
Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.

Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
