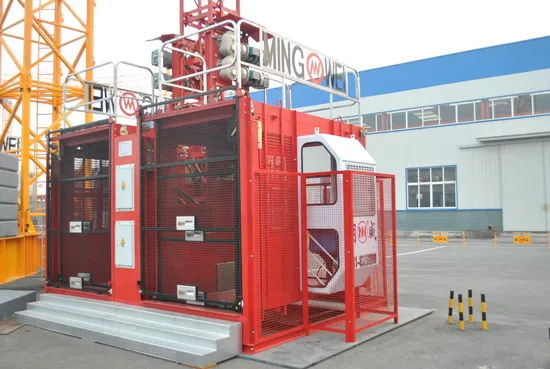

High Quality Single/Double Cage Building Lifter with Large Load Capacity Construction Hoist

Product Description

High quality single/double cage building lifter with large load capacity construction hoist

Product Feature

1.Set remote intelligent monitoring, rights management, voice, remote control and other intelligent control technology in one.
2.Automatic leveling accuracy up to 1.5MM.
3.The lifting cage automatically runs to the corresponding floor, and the floor door automatically opens
4.Can cancel the full-time driver, reduce the cost of use. 5.Wide main beam design, improve the overall strength.
6.Double support rollers make the whole machine run more stable.
7.Weight increase protection, beautiful appearance.
8.The rope wheel is protected to prevent rope hanging.9.The efficiency of the reducer is 95%, 20% higher than that of the ordinary reducer.
10.Motor power2*15KW. Only need to change the lubricating oil once in a lifetime, reducing maintenance costs.

Technical Data

SC Building Hoists Technical Parameter	Unit	Type
		SC100	SC100/100	SC200	SCD200/200A
Rated Load	kg	1000	2*1000	2000	2*2000
Number of people	people	12	2*12	24	24
Rated Hoisting speed	m/min	38	38	38	38
Max. Hoisting Height	m	150	150	150	150
Cage cavitating size	m	3*1.3*2.2	3*1.3*2.2	3*1.3*2.2	3*1.3*2.2
Motor Powder	KW	2*9.5	2*2*9.5	2*3*10.5	2*3*10.5
25%Load power	KW	2*10.5	2*2*10.5	2*10.5	2*10.5
Standard section quality	kg	120	145	160	160
Standard section size	mm	650*650*1507	650*650*1507	650*650*1507	650*650*1507
counterpoise	kg				1200

Single/Double Cage 2 Ton Construction Materials Hoist. 2000 kg Capacity Construction Elevator Man and Goods Construction Hoist. is a new generation of SC series products successfully developed.While inheriting the advantages of the old products, the new generation of products pays more attention to the improvement of safety, reliability, convenience of maintenance and operation comfort, and the advantages are as follows:
--The optimized structure of the hanging cage is light in weight, improved in lifting performance and reduced in energy consumption;
--The transmission mechanism adopts gear reducer, and the transmission efficiency is improved by more than 15%;
--The bottom cage door adopts punched aluminum plate, which improves the appearance;
--Easy installation and convenient transportation;
--The whole machine runs through the humanized and modular design concept;
--A variety of configurations are available for customers to choose from.

Packing And Shipping

Details Photo
