Wuling Motors 2 in 1 MCVA2O24 electric driven system electric car differential
Product Description
Product DescriptionProduct Description

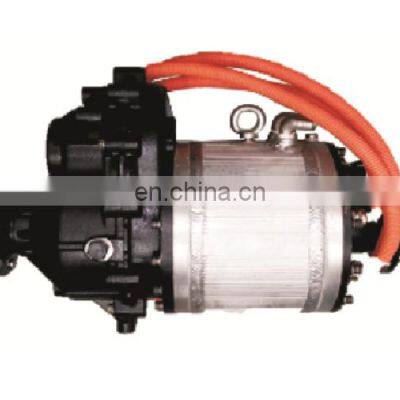

The structure of MCVA2024 electric driven system is semi-coaxial, 2 in 1 for largemediummini electric sedan,SUV and coupe.
| Item | Unit | MCVA2O24 |
| Transmission ratio | - | 10.74(Variable) |
| Rated input torque | N.m | 90/220 |
| Max input torque | N.m | 220(can increase) |
| Rated input speed | rpm | 3183 |
| Max input speed | rpm | 10000 |
| Rated motor power | kw | 30/60 |
| Peak motor power | kw | 60(can increase) |
| Voltage | v | 336 |
| Distance between input and output shaft | mm | distance between shaft I and III 118,coaxial |
| Weight | kg | 74.5 |
| Dimension | mm | 583*412*268 |
Manufacturing Technique
Company Profile
Liuzhou Wuling Automobile Industry Co., Ltd is a large Sino-foreign joint venture established by Guangxi Automobile Group Co., Ltd and Hong Kong-listed company. Wuling Automobile Group Holdings Ltd(HK0305) based on the integration of original businesses of Guangxi Automobile Group Co., Ltd, including Auto parts, engines and special purpose vehicles, its total assets amounted to 12.731 billion yuan, the annual revenue in 2018 was 16.9 billion yuan.
Related Products
Exhibition
Liuzhou Wulinlg attended the 2019 Automechanika Shanghai .
