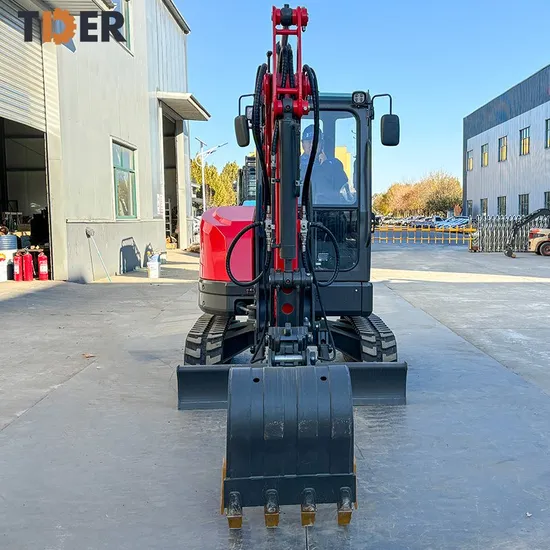

Tder Supplier Excavators 3.5ton Crawler Type Excavator with Attachment

Product Description

Product Parameters

Model	TCE35
Enging
Engine Power	Kubota D170318.5KW/2200rpm
Max. Turque	97.4NLm/1500RPM
Type	In-line, water cooled, Mechanical pump, nomally aspiraled
Displacement	1.647L
No. of cylinder	4
Main Performance
Swing Speed	rmin	0-11
Traveling Speed(high/low)	km/H	4.4/2.4km/h
Grade ability		58%
Max. Bucket Digging Force	kN	30.4
Arm Dioging Foroe	kN	18.2
Ground Pressure	Kpa	32
Hydraulic system pressure	Mpa	22.5
Machine Weight	KG	3810
Boam Length	Mm	2535
Arm Length	Mm	1400
Fuel Tank capacily	L	42
Hydraulic Tank capacity	L	48.5
Engine oll capacity	L	7
Carrier roller(each side)		1
Supporting roller(each side)		4
Overall Dimensions
Overall Length	mm	4915
Overall Width	mm	1720
Overall Height	mm	2525
Mini Ground clearance	mm	295
Track width	mm	300
Axie base(Track length on ground)	mm	1670
ength of track	mm	2154
Track Gauge	Mm	1420
Swing radius at tail	Mm	860
Swing radius at front	Mm	2538
Height of blade	Mm	350
Operation parameters
Bucket Capacity	m²	0.12
Max. Digging Radius	mm	5480
Max. Digging Depth	mm	3208
Max. Digging Height	mm	4800
Max. Dumping Height	mm	3406
Max, vertioal digging depth	mm	3208

*Please contact us if you need more detailed parameters.
Product Description
1. The advanced hydraulic system not only provides the best balance between power and efficiency, but also gives you the controls you need to meet your precise digging requirements.

2. Valve priority allows hydraulic pressure and flow to the levels you set for fast light to medium duty cycling.

3. Accessible controls are located in front of the operator for comfortable operator control of the excavator.

4. The whole machine can be equipped with quick-change line, auxiliary two-way line, auxiliary one-way line and auxiliary rotary line, which expands the function of the whole machine.

5. With mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved.

6. Simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding.
Packaging & Shipping
*All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing machines.
*We also offer wooden packing way to make the machines safer.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
