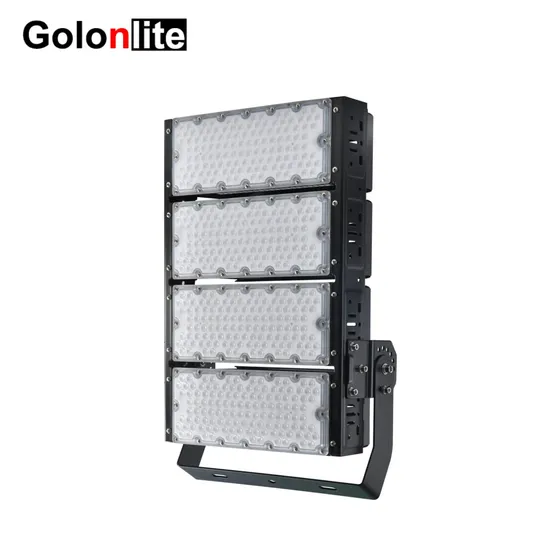

Factory Price IP66 Outdoor Stadium Sports Field High Mast Football Tennis Court Lighting

Product Description

Factory Price IP66 Outdoor stadium Sports Field High Mast Football Tennis Court Lighting
Dialux lighting study available

Product description:
Item No.:		GL-TL-100W /200W/300W/400W/500W/600WC
Light	LED Type	SMD5050 / SMD3030
	Luminous Efficiency	140Lm/W ; 150Lm/W
	CCT(K)	2700K / 3000K / 4000K / 5000K / 5700K / 6500K
	CRI	> Ra70 / Ra80
	Power Supply	Meanwell / Sosen /Inventronic / DONE Driver
	Lifespan (Hrs)	> 50,000Hours
Electricity	Input Voltage(V)	100-277VAC / 347V/ 480V 50/60Hz
	Dimming function	0-10V,PWM,Resistance, Dali dimmable ( Dali / DMX control system)
	Power Consumption(W)	100W /200W/300W/400W/500W/600W
	Power factor	>PF0.95
	Beam angle	20° /40° / 60° / 90°
	Replacement	Metal Halide / HPS / HID / Halogen lamps 1000-2500W
Structure	Materials	Fin Aluminum housing + optical lens
	Base(Standard Design)	30cm 3 cores cable outlet(US/EU/US/AU plug optional)
	Protection Grade	IP66 waterproof
Certificate	CE RoHS 5 years warranty

High efficiency LED floodlight features:
1. Adopt with world famous Meanwell / Sosen / Inventronics driver; SMD5050/ SMD3030;
2. Super bright, reach high effieciey 150Lm/W.
3. Fin Alumium housing design, for the best heat sink solutions,; 20% weight lighter compare to other lights;
4. Beam angle: 1 20° / 40 ° / 60° / 90°;
5. Anti-dust design,able to be with flushable cleaning;
6. 180° adjustable for the whole lamp with Round installation plate;
7. 0-10V/Dali dimmable, DMX / Zigbee / DALI system control options;
8, IES files, free dialuxt lighting study available
9, 13 years LED factory, professional & experienced at LED lighting solutions.
LED Flood light:
LED flood light size (Unit: mm)
LED flood light real images:

LED flood light items:

Model	Power	Lumens Efficiency	Beam angle	Replacement of MHL/Halogen	Driver	LEDs	Dimmable optional
GL-TL-600WC	600W	140-150Lm/W	20/40/60/90/ 120/ 140*100	2000W	Meanwell /Sosen /Inventronics	Lumields SMD5050/ SMD3030	1-10V,PWM, resistance, Dali dimming
GL-TL-500WC	500W			1000W-2000W
GL-TL-400WC	400W			1000W
GL-TL-300WC	300W			1000W
GL-TL-200WC	200W			500W-1000W
GL-TL-100WC	100W			250W-500W

Factory Price IP66 Outdoor stadium Sports Field High Mast Football Tennis Court Lighting
LED flood light more beam angle options:

MORE LED floodlight series:
Free Lighting simulation. Welcome inquiry
High efficency LED flood light for high mast lighting stadium football sport court seaport airport wharf building
LED FLood light accessories available:
DALI /DMX / Zigbee control system available:

China LED light manufacture-- GOLON
Experienced LED lights manufacturer since 2010 offers LED lighting solutions
New produced LED lights, fast delivery
Dialux lighting study available
Golonlite is a technology oriented enperprise in Shenzhen, integrating the research, development, design and production of industrial / Commercial LED light fixtures. . We have our own brand Golonlite registered in Shenzhen. With 9 years experirnece of production, engineering and world trades, we understand the importance of price, quality and design,so we do our own procutions, engineerings and reseach into full consideration. Our main prouduct lines include LED flood lights, LED high bay lights, LED canopy lights, LED street lights, high mast LED stadium light, solar LED street lights, tennis court lighting solutions,exterior led spotlight, LED PL lamp bulbs.
We are well-known in the LED industry with our advanced technology, scientific management, excellent quality and the first-class services.

GOLON Services
1. Any inquiries, will be replied in 24hrs.
2. All your inquiries will be well explained by our experienced staff.
3. All after sale problems will be deal with in 24hrs.
4. OEM, ODM welcomed.
5. Distributorship is available for your unique design and some our current models.
6. We will keep secret for customer sale area,design ideas and all other private information.
7. Offer 5 years warranty.
8. Lighting design for free --- Provide IES file, Dialux lighting design & solutions.
Golon Manufacturing Co. Ltd.
Unit price is negotiable, any need of high power LED flood light 1500W 1440W 1200W 1000W 960W 800W 720W 500W 480W 400W 300W 240W 200W 120W 100W options. Just contact with us, will reply in 24hrs.
