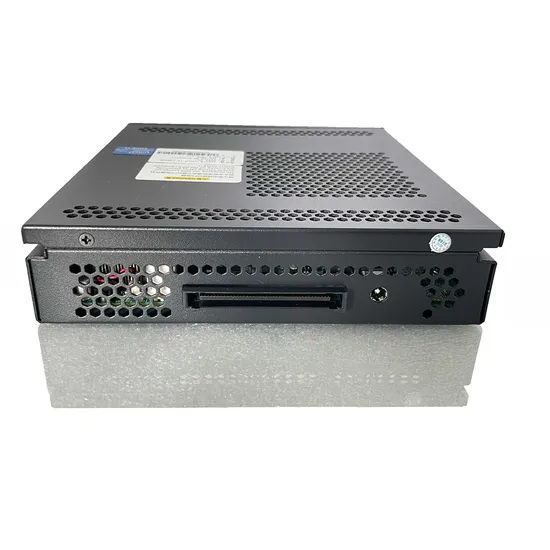

interactive flat panel 30mm and 42mm standard I7, RAM8G/128G SSD mini computer Slot in OPS Industrial Computer
| US$235.00-266.00 | 1 Piece (MOQ) |
Basic Info.
Operating System
Windows 10
Ports
HDMI
Processor
Intel Core i3
RAM Capacity
4GB
Storage Type
SSD
Wi-Fi Connectivity
Bluetooth 5.0
CPU Model
7th generation Intel® CoreTM i5-7500 processor
Core and frequency
Core NO:4 Thread:4 Basic frequency 3.50GHz
RAM
DDR4-8G 1 x SODIMMs DDR4
Front Output
DP-Max.3840 x 1920, HDMI-4K,
Hard Disk
512G SSD
Network card - Dual frequency 5G
2.4G&5G Gigabit LAN controller
extension port
Mini-PCLe(Built-in)
Power requirement
DC-IN 12-19V
Physical size
180.8 x 195.2 x 42.5 mm
Heat Dissipation
Copper tube with double ball fan for side air cool
Surroundings
0 - 40 celcus
Power on automatically
Support, hardware control, power on, automatic boo
material
iron shell
I/O port
DP, HDMI, USB,AUDIO,
Connector
80pin
Transport Package
in Carton
Specification
30MM, 42MM
Trademark
OEM
Origin
Guangdong Shenzhen
HS Code
852850
Production Capacity
200PCS/Day
Packaging & Delivery
Package Size
27.00cm * 19.00cm * 7.00cm
Package Gross Weight
1.000kg
Product Description
interactive flat panel 30mm and 42mm standard I7, RAM8G/128G SSD mini computer Slot in OPS Industrial ComputerProduct Description i3, i5, i7 processor available
RAM4G/8G/16G, ssd/eMMC: 128G/256G/512G.
Generation: 4th, 5th, 6th, 7th, 8th, 9th, 11th available, pls constact us to customize
Windows 10, Windows 11 etc Optional
Input/output connector:HDMI, DP, USB3.0, USB2.O, RJ232,
International standard 80pin connector
OPS 30mm and 42mm standard for interactive flat panels.
WIFI &Bluetooth
Warranty 2 years
CE ROHS FCC include
Window OS Official register code optional
Detailed Photos
Product Parameters
| Processor | System chipset | intel® H110 Express | |||||||
| CPU Model | 7th generation Intel® CoreTM i5-7500 processor | ||||||||
| Core and frequency | Core NO:4 Thread:4 Basic frequency 3.50GHz | ||||||||
| RAM | Technology | 1 x SODIMMs DDR4 | |||||||
| RAM | DDR4-4G | ||||||||
| Display | Front Output | DP-Max.3840 x 1920 | |||||||
| HDMI-Max.3840 x 1920 | |||||||||
| JAE port | HDMI-Max.3840 x 1920 | ||||||||
| Processor Graphics | Model | Intel® HD Graphics 530 | |||||||
| Maximum memory | 64G | ||||||||
| Frequency | 350 MHz | ||||||||
| Maximum dynamic frequency | 1.05 GHz | ||||||||
| Hard Disk | SSD | 128G | |||||||
| Network card - Dual frequency 5G | Interface | PCIE | |||||||
| Support | 2.4G&5G | ||||||||
| Gigabit LAN controller | |||||||||
| I/O port | JAE Connector | 1(JAE TX25 80-PIN) | |||||||
| DP | DP-Max.3840 x 1920 | ||||||||
| HDMI | HDMI-Max.3840 x 1920 | ||||||||
| LAN | 1(RJ45.) | ||||||||
| USB | 3 x USB3.0 & 3 x USB2.0 | ||||||||
| Audio | 1 x AUDIO OUT + 1 x MIN IN | ||||||||
| Port | 1 x COM (RS-232 op | ||||||||
| extension port | Mini-PCLe(Built-in) | 1 x Mini-Pcle | |||||||
| 1 x Msata | |||||||||
| Power requirement | Input voltage | DC-IN 12-19V | |||||||
| Physical characteristics | Size | 180.8 x 195.2 x 42.5 mm | |||||||
| Sheel material | Iron | ||||||||
| Heat Dissipation | method | Copper tube with double ball fan for side air cooling, temperature control | |||||||
| Surroundings | Temp | 0 - 40ºC | |||||||
| Relative humidity | 95% @40ºC | ||||||||
| Software development kit | operating system | Windows®8.1 Windows®10 linux | |||||||
| Power on automatically | Support, hardware control, power on, automatic boot, dial switch | ||||||||
