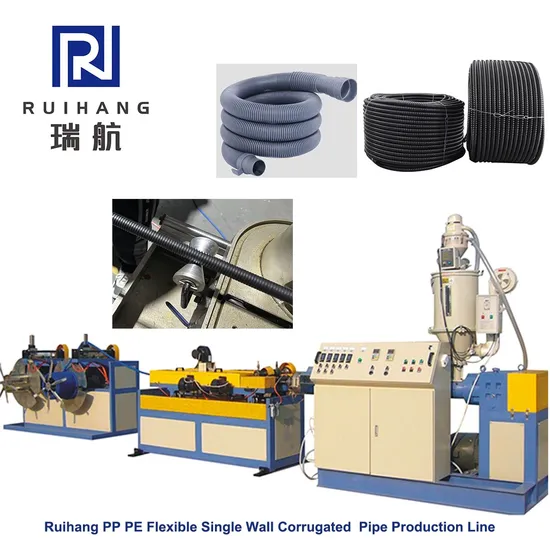

Ruihang Automatic PP PE Flexible Single Wall Corrugated Pipe Production Line

Product Description

Product Description
Production line composition:
Single/twin screw extruder, corrugated tube forming machine, tube mold, air cooling device, counter, coiling machine
Main features of the production line:
1. The cooling system of the corrugated pipe forming machine is highly efficient and the production speed is fast, which increases the output of plastic pipes and reduces production costs.
2. The modules can be replaced quickly. The complete set of modules consisting of many pairs of single modules can be replaced in a short time. Try to reduce the interruption of the production process.
Features and applications of the products produced:
Plastic single-wall corrugated pipe equipment has the characteristics of high temperature resistance, corrosion resistance, wear resistance, high strength and good flexibility.
It can be used as ventilator corrugated expansion pipe, wire and cable threading pipe, bridge prestressed corrugated pipe, washing machine drain pipe, air conditioner drain pipe, sewer collection pipe, vacuum cleaner pipe, ventilation pipe, medical grade corrugated pipe, etc. Product Parameters

Equipment model	DBG-63	DBG-75	DBG-160	DBG-10	DBG-25
Screw diameter (mm)	65	65	75	45	45
Screw aspect ratio	28:1	28:1	30:1	28:1	28:1
Total installed power (KW)	18	45	55	15	15
Pipe specification (mm)	16-63	50-75	90-160	6-10	8-20
Tractive speed (m/min)	10	8	5	20	15

Detailed Photos

Production Line Display :

Product Display :
