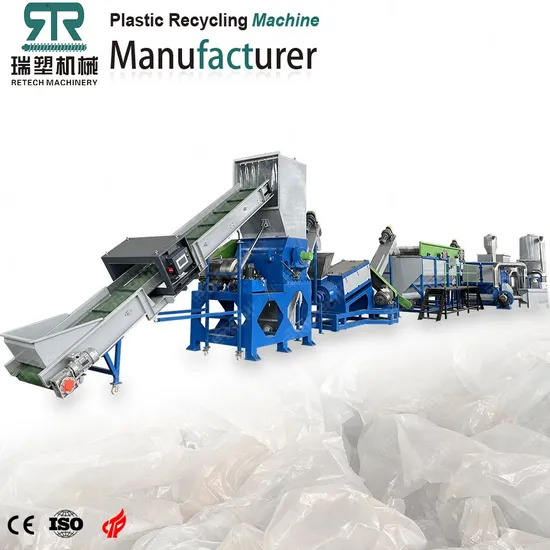

Good Quality Waste Farm PP PE LDPE Film Recycling Washing Machine

Product Description

Good Quality Waste Farm PP PE LDPE Film Recycling Washing Machine
Retech is a professional manufacturer of plastic recycling machinery in China.With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
Product Overview
Our Plastic Film Washing Line is used to recycle waste plastic such as plastic bags, PP woven bags, plastic agriculture film,greenhouse films, mulching films,plastic pachage films,PE waste film,PP waste film,PVC waste film, industrial film, printed film and etc. Capacity:300-1500kg/h. Our fully automated PE film washing line is the ideal solution to your PP/PE film recycling needs. Using a series of high-tech recyclig machinery,our washing line takes dirty and soiled polypropylene(PP) or Polyethylene(PE) plastic film and turns them into usable,clean,contaminant-free film pesces suitable for pelletizing into PP/PE pellets, or sometimes referred to as granules.
Product flowchart
The LDPE PP PE HDPE Film Washing Recycling Machine Processing:
1.Belt Conveyor 2.Wet Crusher 3.Screw Conveyor 4.Floating Washing Tank 5.Screw Conveyor 6.High Speed Friction Washer 7.Screw Conveyor 8.Dewatering Machine 9. 1st Drying System 10.Transition Silo 11. 2nd Drying System 12.Storager Silo 13.Electric Cabinet
Our Machine:
Cleaning Process of Plastic Film Washing Line:
1.Shredder machine or crusher depend on the shape and size of plastic film.
2.Unique design of new angle blades in crusher to max capacity.
3.High speed friction washer and label remover system to separate film and stickers especially for LLDPE packaging film.
4.Film squeezing machine or centrifuge dryer optionally.
5.Rich experience for different PE film recycling solutions Product Specification

Type		RT300	RT500	RT1000
Capacity(kg/h)		300	500	1000
Energy consumption(KWH)		95	156	229
Installation power(KWH)		146	241	352
Dimension: L*W*H(m)		Depends on factory layout	Depends on factory layout	Depends on factory layout
Belt conveyor	Belt width(mm)	600	800	1200
	Motor power(KW)	1.5	2.2	3
Metal detector-Optional	Pass width(mm)	800	1000	1200
	Pass height(mm)	400	400	400
Crusher	Grind chamber(mm)	500*700	700*1000	/
	Motor power(KW)	55	75	/
Shredder	Grind chamber(mm)	/	/	/
	Motor power(KW)	/	/	75
Screw conveyor	Screw diameter(mm)	300	400	500
	Motor power(KW)	3	4	5.5
Washing tank	Dimension of tank(mm)	4000×1400	5000×1600	7000×1800
	No. of thumb-wheel(pcs)	4	6	7
	Discharge plate valve(pcs)	2ports*2=4	3ports*2=6	4ports*2=8
Friction washer	Screw diameter(mm)	300	400	500
	Motor power(KW)	11	18.5	30
Squeezing dryer	Screw diameter(mm)	/	320	410
	Motor power(KW)	/	55	75
Storage buffer	Storage capacity(CBM)	3	4	6
	Motor power(KW)	2.2	3	4
Waste water filtration device-Optional	Vibration screen size	800	1000	1200
	Screen mesh	40	40	40
Electrical cabinet	PLC controller	/	/	/
	Button type	/	/	/
Man power(person/shift)		3	3-4	3-4
Delivery time(day)		60-90	60-90	60-90
Warranty(month)		12months	12months	12months
Technical assistance		Egnineer available to service machinery overseas	gnineer available to service machinery overseas	gnineer available to service machinery overseas

Detailed Photos
1.Crusher
(1)RETECH RT series crusher is applicable to woven bags, jumbo bags,films etc
(2)Using D2 blade which has longer service life than SKD-11 blade.
(3)Our crusher is designed to meet the production requirements of high capacity crushing and one-time crushing of large materials.
(4)Designed according to your raw materials
(5)Design the best cutting angle and the moost suitable cutting rate
(6)Wear resistant design, ensure continuous operation for a long time.

2.Floating Washing Tank
(1)Unique reverse discharge method and scientific wheel combination, uniform discharge, no blocking.
(2)Flat-type wheel blade design, plus efficient crushing of crusher,no long material is generated, no material entanglement.
(3)Bottom screw drainage design makes daily maintenance more convenient.
(4)The transmission device is externally equipped with a protective cover. The level of the tank body is raised, no water & material splashes, keep the factory clean.
(5)Can design floating washer for sinking & floating materials co-use to meet customer's multi-purpose needs and save investment.
3.High speed friction washer
(1)Special blade arrangement, uniform dicharge, sufficient friction cleaning,high water utilization rate, effective removal of paper labels, and other impurities.
(2)Frame structure body, smaller vibration.
(3)Adopt high-speed heavy-duty bearings,stainless steel spindles,and blades,dynamically balanced.

4.De-watering Machine
(1)The integrated design of the dewatering machine and the fan, no need for a separate fan, which saves energy and enables smooth feeding and discahrging, no blocking.
(2)Adopt high-speed heavy-duty bearing, stainless steel spindles, and blades, dynamically balanced.
(3)Automatic screen cleaning device which is driven by air pressure, labor-saving.
(4)Adopt a container for collecting waster water &residue at the bottom.

5.Silo
(1) Easy to collect the final output material, can be customized to your use requirements, with hooks to hang the jumbo bag or other collection containers.
(2)Hydraulic cylinder design make full use of jumbo bag loading space.
(3)Each hook can bearing 500kg.
(4)Stainless steel inner to protect the final products quality.

6.Electrical Cabinet
(1)International brand Low voltage components
(2)Double circuit safety relay
(3)Intelligent and modular PLC controlling system
