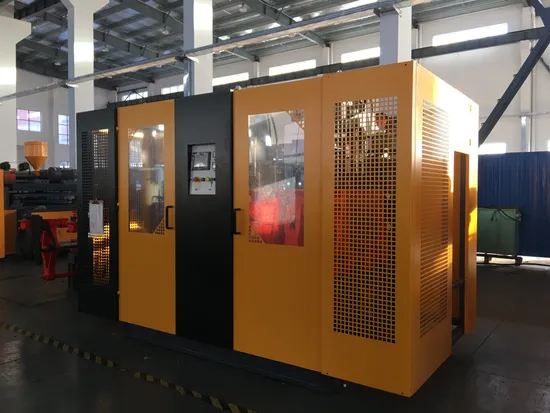

30L-60L Energy Saving Seat Blow Moulding Machine

Product Description

30L-60L energy saving seat blow moulding machine
Suitable for PE, PP, PVC, PETG, PS, EVA, ABS, TPU, etc all kinds of plastic hollow level;Can produce 5 ml to 5000 l plastic buckets, bottle, pot of hollow plastic containers and tools such as bags, counterweight plate, traffic facilities, medical apparatus and instruments, automobile tail, duct, desktop, plastic tray, airline seats and other kinds of hollow plastic products
Business Item:
If the Buyer agrees to buy the above-mentioned goods, all the business item will be according to the terms and conditions as stipulated below, these goods will be exported by exporting company belonged to seller, which referred in the following:
Guarantee time: One year from the machine is running in buyer's workshop.Packing: PE film with wooden pallet under machineShipping Marks:Port of Shipment: Shanghai,ChinaPort of Destination:Delivery time: 50 days after receipt of deposit.Terms of payment: T/T 30% payable as deposit, the other shall be paid before shipment.Beneficiary,Bank of Account & Number of Account:INSTALLTION, COMMISSIONING AND TRAINING After-sales service
Technical documents
All the symbols on the equipments should be in English. Seller is responsible to provide general
layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer's factory; Buyer is responsible for all preparation
work, e.g. electricity supply, water supply operators and cranes, etc.
b. we will prepare for visa application for their engineers, who are responsible for guide of
machine installation and testing at the Buyer's factory.
c. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The
buyer is also responsible to bear expenses generated, e.g. visa formalities, meals,
accommodation and allowance of USD100 per day for each engineer.
d. Engineer will give free training lessons to operators in buyer's factory.
e. If buyer doesn't request installation and commissioning by Seller's engineer within 4 months from
the date of the bill of lading, which to be accounted all the machines has been successfully tested by
buyer. SPARE PARTS AND INSTRUCTION MANUAL: The quotation are including the all necessary spar parts for 1 year operation.
One set of instruction manual (operator manual, maintenance manual, installation instruction, electrical circuit diagram and spare parts catalogue) will be delivered together with each machine.


Main parameters

Specification	Unit
Raw material		PE.PP.ABS......
Max size	L	60
capacity	Pc/hr	50
Dimension	M	4.3×2.4×2.9
Weight	ton	8.2
Clamping unit
Clamping force	KN	150
Template spacing	mm	410-820
Template size	mm	550×600
Max molds size(W*H)	mm	550×580
Thickness of molds	mm	560
Drive
screw fan power	KW	0.18×3
air pressure	Mpa	0.8
Air consumption	m³/min	0.8
Cooling water pressure	Mpa	0.3
Avg consumption power	KW	35
oil pump power	KW	15
Extrusion system
Screw diameter	mm	75
screw rate of L/D	L/D	25
Plastic capacity	Kg/hr	90
screw heating zone	zone	4
screw heating power	KW	14.5
extrusion motor power	KW	30
Die head
die head heating zone	Zone	4
die head heating power	KW	9.5
max extrusion mouth diameter	mm	215
