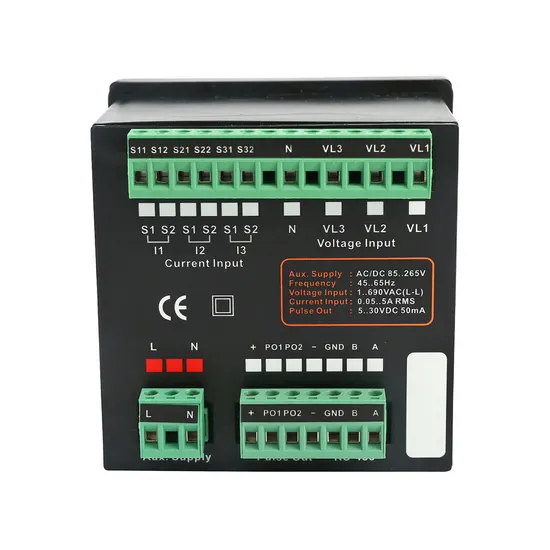

Rpm40 Power Meter Multi Meter
| US$43.00-107.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RPM40
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Maximum Demand Meter
Electric Equipment
Single-Phase,Two-Phase,Three-Phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Continuous Wave
Type
Power Meter
Certification
RoHS, ISO, CE
Customized
Customized
Power Consumption
3vamax
Operating Voltage (Un)
85~265 VAC 50/60Hz (Depend on Order)
CT Inputs
3 Current Input: 0.05-5.5A
Voltage Inputs
4 Voltage Input : Max 690VAC (L-L)
Transport Package
Carton Box
Specification
96*96
Trademark
Romaz
Origin
China
HS Code
9030390000
Production Capacity
50000PCS/Month
Product Description
Product Description* True RMS measurements
* For single-phase, two-phase, three-phase system
* Measurements:VL-L, VL-N, I, In, Pf, Hz, W, ΣW, Va, ΣVa, Var, ΣVar, import Kwh,
export Kwh import Kvarh, export Kvarh, V-THD, I-THD, system running hours,
% voltage unbalance, % current unbalance, % system load, total frequency
* 3 voltage and 3 current input (Calculate the neutral current)
* Maximum, minimum and demand for U, I, P, Q, S in hours, days
* Voltage Input: 0-690Vac, Current input: 1 or 5A CT selective
% system load and system running hours
* 4 quadrants energy measurement support bi-directional power monitoring includes
measurement on regenerative loads
* RS485 communication: Modbus RTU
* English, Chinese (traditional & simplied) or Other language
Product Parameters
| Auxiliary Supply | |
| Operating voltage (Un) | 85···265 VAC 50/60Hz 10W / 100-285VDC/24-48VDC(depend on order) |
| Power consumption | 4VA max |
| Measurement input | |
| Voltage inputs for direct connection: | Phase-neutral(L-N): max 400V RMS CAT III |
| Input impedance(for direct voltage inputs): | >4MΩ |
| CT inputs: | max 5.5A RMS |
| CT inputs overload capacity: | max 10A |
| CT inputs Self-consumption : | < 0.2VA |
| Accuracy | |
| Three phase voltage: | ± 0.5% |
| Currents: | ± 0.5% |
| Powers: | ± 0.5% |
| Powers factor: | ± 0.5% |
| Frequency: | ± 0.02% |
| Harmonics: | ± 1% |
| Active energy: | Class 0.5S |
| Reactive energy: | Class 0.5S |
| Insulation | |
| Insulation voltage | 3kV for 1 min., 50Hz |
| Display | |
| Display type | 3.2inch 240x160 pix LCD |
| Communication | |
| RS-485 port: | 1 optoisolated, 4800-57600 |
| Protocols: | Modbus RTU |
| Environmental conditions | |
| Opterating temperature: | -10···+55°C |
| Storage temperature: | -25···+75°C |
| Relative humidity: | 95% max without condensing |
| Altitude: | max 2000m AMSL |
| Installation & use: | Internal |
| Mechanical characteristics | |
| Mounting: | Panel mount 96x96mm(The panel cut-size 92*92mm) |
| Size: | Front(WXH)96x96mm, Rear (HxD) 90x70mm |
| Degree of protection: | IP40(optional IP54) on front, IP20 housing and terminals |
| Weight: | 350g |
| Standard compliance | |
| reference standard: | IEC61010-1;IEC61557-12; IEC62053-22; IEC62053-23; IEC61326-1; EN55011; IEC61000-3-2; IEC61000-3-3; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-8; IEC61000-4-11; IEC61000-4-30 |
Installation Instructions
