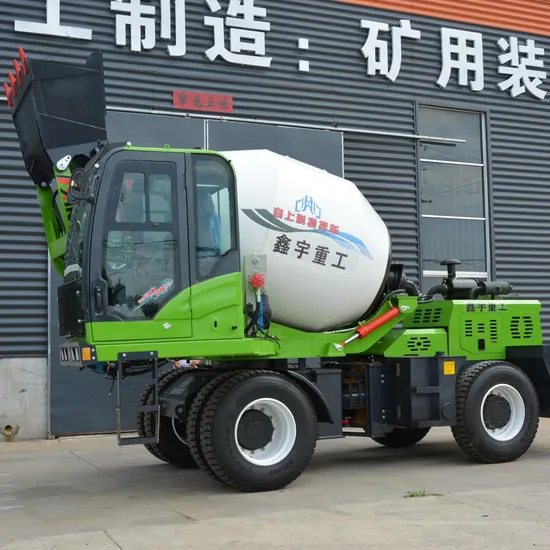

Construction Concrete Pump Tractor Auto Dumping Mobile Self-Loading Small Cement Concrete Mixer Truck

Product Description

Main Features: 1,Articulated steering with small turning radius and flexibility. 2,Enlarged water tank , Save time for adding water .Improve work efficiency.One tank of water can be used for mixing 3 cans of concrete. 3,With the forward dumping function, discharge faster and more thorough. 4,The hydraulic external water pumping system can quickly add water and has greater water absorption. 5,Flexible and convenient pilot control system 6,XINYU concrete mixer truck is equipped with HD reverse image

Equipment model	1500	Climbing uphill	30°
External dimensions	6500*1800*3450	Turning radius	4700 mm
engine	490 T	Fuel tank capacity	65L
power	58 KW	Total hydraulic oil capacity	65L
Deceleration bridge	Special wheel reduction axle for mixer trucks	engine oil	16L
Gear position	4 forward and 4 backward	Water tank capacity	500L
transmission case	265 gearbox	Geometric capacity of drum	1.5 m³
speed per hour	30km/h	Drum rotation speed	13r/min
Whole machine weight	4920 kilograms	Actual discharge	1.5 square meters

Equipment model	2000	Gear position	4 forward and 4 backward
External dimensions	6950 * 2720 * 3850 mm	Fuel tank	75 L
wheelbase	2520 mm	Total capacity of hydraulic system	75 L
curb weight	6300 kg	engine oil	16L
Drive form	Torque converter	Water tank capacity	500L
Maximum speed	35km/h	Water supply method	Time relay
Maximum climbing gradient	40°	Geometric capacity of drum	2000 L
tyre	23.5/70-16	Drum rotation speed	13 r/ min
Engine model	4102 T	Concrete production	2m³
Rated power	78 KW	Transmission model	265 Power Shift Transmission

Equipment model	3000	Gear position	4 Forward 4 Back
wheelbase	2900 mm	Fuel tank	120L
External dimensions	7830*2680*4170 mm	Total capacity of hydraulic system	120L
curb weight	7800 kg	engine oil	16L
Drive form	Torque converter	Drum rotation speed	620L
Maximum speed	30km/h	Actual discharge	Time relay
Maximum climbing gradient	30°	Geometric capacity of drum	4740 L
Minimum ground clearance	380 mm	Drum rotation speed	18-21r/min
Engine model	4105T	Concrete production	3.0m³/ tank
Rated power	85 KW	Transmission model	280 power shift gearbox

Equipment model	3500	Gear position	4 forward and 4 backward
wheelbase	2480 mm	Fuel tank	230L
External dimensions	7640*2870*4750 mm	Total capacity of hydraulic system	170L
curb weight	9000 kg	engine oil	16L
Drive form	Torque converter	Actual discharge	Time relay
Maximum speed	35km/h	Geometric capacity of drum	6000L
Maximum climbing gradient	45°	Drum rotation speed	18-21 r/min
Minimum ground clearance	330 mm	Drum rotation speed	780L
Engine model	4105 T	Concrete production	3.5 m³/ tank
Rated power	83 KW	Transmission model	Zl-315 power shift gearbox

Equipment model	4000	Gear position	4 forward and 4 backward
External dimensions	8450*3100*4580 mm	Fuel tank	160L
wheelbase	3350 mm	Total capacity of hydraulic system	160L
curb weight	11200 kg	engine oil	20L
Drive form	Torque converter	Reducer	HJ80-43
Maximum speed	42km/h	Drum rotation speed	860L
Maximum climbing gradient	45°	Actual discharge	Time relay
Minimum turning radius	6200 mm	Geometric capacity of drum	7800 L
Minimum ground clearance	380 mm	Drum rotation speed	20 r/min
Engine model	4108 T	Concrete production	4m³/ tank
Rated power	92KW	Transmission model	Zl-428 power shift gearbox

FAQ :
1. What Certificate do you have?
Yantai xinyu workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
Yantai xinyu never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
Yantai xinyu will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the Yantai xinyu
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
