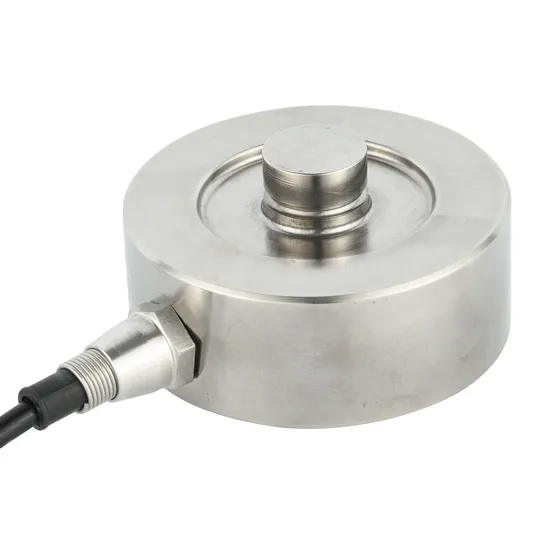

High-Sensitivity Factory Outlet Wholesale Pancake Load Cell 2.5t to 30t for Industrial Control Weighing System

Product Description

Product Parameters
Feature Adopting high-precision resistance strain principle With unique technology, stable for property Potted or laser sealing, insurance for using surrounding stainless steel material, preventing of oil, moisture and corrosion Specification

Capacity	2.5-30t	Material	stainless steel
Rated Output(mV/V)	2.0±0.005	Non-linearity	±0.05%FS
Hysteresis	±0.05%FS	Repeatability	±0.02%FS
Creep(30 minutes)	±0.02%FS	Zero balance	±1.00%FS
Temperature effect on zero	±0.02%F.S./10ºC	Temperature effect on output	±0.02%F.S./10ºC
Input resistance(Ω)	750±10	Output resistance(Ω)	700±5
Insulation resistance	≥5000MΩ	Excitation voltage	5V-10V(DC)
Compensated temperature range	-10~+50ºC	Operating temperature range	-20~+60ºC
Safe overload	120%FS	Breaking loading	150%FS
Cable	Φ5.4 X 6M Or customized by request	Cable color code	Input: red+ black- Output: green+ white-

Dimension

Rated load (t)	D	D1	D2	A	B	C	SR	M
2.5-15se	82	22	70	44	32	15	120	M8
15-25	100	28	80	48	35	15	120	M10
30	126	35	90	54	40	18	120	M12

Application
Mainly used for automotive, mechanical facility, auto facility and other weighing system.
Detailed Photos
Company Profile Huzhou Zhihe Technology Co., Ltd(referred to as "ZhiheTech")is locating at the Moganshan National High-tech Zone, Deqing Science and Technology Park. Zhihe Tech is specially developing in high-tech industrial products. We are a technical company including the new technology R&D, manufacturing, sales, and technical service of the high-tech products and industry.With more than 10 years' manufacturing and R&D experience of load cells, Zhihe Tech is a dynamic team. We are having long term cooperation with many professional research institutes and high schools, that improves our technical innovation.Zhihe Tech has advanced management system, including manufacturing, technology, process supporting, marketing and quality controlling system. Our engaged team makes our products with favourable reputation in the domestic and overseas marketing.Our main business includes the R&D, manufacturing, processing, technical service of load cells, various indicators, weighing components and weighing controlling system.It will continue to be our faith and tenet that first for quality, technology-based, best for customer. Our advanced products and services will be provided to meet customers 'and partners' requirements.
Packaging & Shipping
FAQ
Q1. What is the MOQ? A: If we don't have it in stock, the MOQ is 10 pcs ; If we have it in stock, we can ship you even 1 pc as sample. Q2. What is lead time? A: If we have it in stock, we can ship it to you within about 3-5 working days. If we don't have it in stock, the lead time will be 10-30 days. Q3. What is the payment terms? A: T/T, Western Union, L/C
Q4. What is the express delivery? A: DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: by sea, by air transport. If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice. Q5. What is the quality guarantee? A: Quality guarantee: 12 months.If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you. Q6. Is there any after-sale service? A: After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone and QQ etc. Q7: Have a good price or accept special products? A: We have very competived price and accept customized. Q8: Did you a factory? A: We are a factory in Huzhou and have one hundred staff in the moment.
