1500mm Metal Lathe Machine Ca6140 Lt6140 China Lathe Supplier

Product Description

Product Description

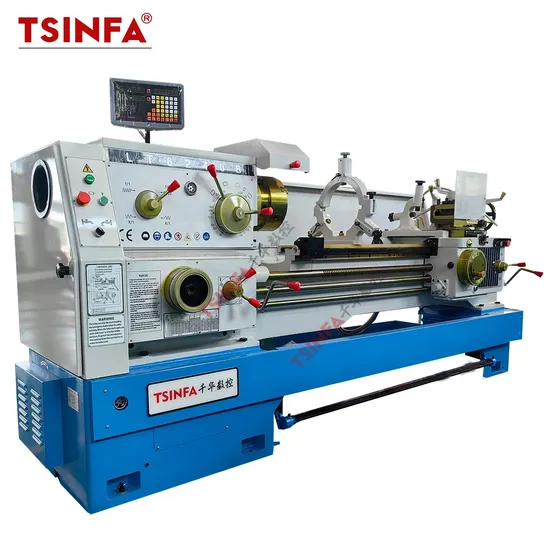

TSINFA LT62 series manual horizontal lathe machine is suitable for turning internal and external cylindrical surfaces,
conical surfaces and other rotating surfaces, turning all kinds of metric, British, modulus and diametral pitch threads,
and can drill holes and pull oil grooves, etc.
It is a universal horizontal lathe, widely applicable to the batch processing of all kinds of shaft and disk parts. The lathe bed of this series is wider than that of general lathe. The guide rail width is 400mm, which has high rigidity. The guide rail surface is hardened by medium frequency, durable and wear-resistant. The operation of the machine tool is flexible and centralized, and the slide plate is equipped with a fast moving mechanism. Using single handle visual operation, pleasant.
The structural rigidity and transmission rigidity of the machine tool are higher than that of the general lathe, and the power utilization rate is high, so it is suitable for strong cutting.Before leaving the factory, the machine tool shall be inspected in strict accordance with the inspection procedure,and the powerful cutting test shall be conducted to ensure that the machine tool has good accuracy stabilityand processing reliability. Product Parameters

Model			LT6240		LT6250		LT6266		LT6280
Specification			LT6240B		LT6250B		LT6266B		LT6280B
When the center distance (processing length) is 4000mm, the machine cannot be equipped with a gap.					LT6250C		LT6266C		LT6280C
Max .Swing over bed			400mm		500mm		660mm		800mm
Max .Swing over cross slide			210mm		300mm		400mm		540mm
Max .Swing over gap			630mm		720mm		880mm		1020mm
Effective gap length			210mm		210mm		210mm		210mm
Max .length of work piece			750/1000/1500/2000/2200/3000/4000mm
Width of bed			400mm
Section of turning tool			25×25mm
Spindle	spindle speed		16-1400rpm(24steps)
	hole through spindle		52mm ,(80mm),[105mm]
	spindle taper		No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		64kinds(64 kinds)(for each)
	range of metric threads		(1-192mm)44kinds (44 kinds)
	range of inch threads		(2-24tpi)21kinds (21kinds)
	range of module threads		0.25-48(39kinds)(module 39 kinds)
	range of diametral pitc threads		1-96DP(37kinds)(37 kinds)
Tailstock	Max. tailstock spindle travel		150mm
	tailstock spindle diameter		75mm
	taper of tailstock spindle center hole		NO.5 (MT5)
Main motor			7.5KW(10HP)
Packing dimensions (L×W×H )		750mm	2550×1140×1750		2550×1140×1750		2550×1140×1750		2550×1140×1750
		1000mm	2700×1140×1750		2700×1140×1750		2700×1140×1750		2700×1140×1750
		1500mm	3200×1140×1750		3200×1140×1750		3200×1140×1750		3200×1140×1750
		2000mm	3700×1140×1750		3700×1140×1750		3700×1140×1750		3700×1140×1750
		2200mm	4030×1140×1750		4030×1140×1750		4030×1140×1750		4030×1140×1750
		3000mm	4800×1140×1750		4800×1140×1750		4800×1140×1750		4800×1140×1750
		4000mm	5680×1140×1700		5680×1140×1700		5680×1140×1700		5680×1140×1700
Weight(kg)		length of work piece	G.W. N.W.		G.W .N.W.		G.W. N.W.		G.W. N.W.
		750mm	2100 1990		2170 2060		2380 2260		2520 2400
		1000mm	2190 2070		2260 2140		2570 2450		2720 2560
		1500mm	2350 2220		2420 2290		2810 2640		2980 2800
		2000mm	2720 2570		2790 2640		3050 2880		3260 3087
		2200mm	2800 2600		2940 2790		3390 3180		3490 3287
		3000mm	3300 3200		3450 3300		3930 3687		4220 3887
		4000mm	3500 3400		3750 3600		4580 4200		4850 4500
