Jinan Dlm CO2 Laser Machine
| US$2,500.00-3,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1390
Application
Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Automatic
Applicable Material
Nonmetal
Type
Flat-Plate
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Engraving Area
1300mm*900mm
Cooling Mode
Water Cooling
Dimension(L*W*H)
1890*1440*1070mm
Software
Laser Cut 5.3
Driving System
Stepper Motor
Engraving Speed
0-60000mm/Min
Applicable Material: AC
Acrylic, Crytal, Glass, Leather, MDF, Paper
Controller Card
Leetro 6525
Interface
USB
Auto up and Down Platform
Optional
Transport Package
Plywood Box
Specification
1300mm*900mm
Trademark
DLM
Origin
Jinan, China
HS Code
84609090
Production Capacity
500 Sets/ Year
Product Description
Jinan CO2 Laser Engraving and Cutting Machine model 1390Applicable materials of the laser key cutting machines
Leather, cloth, wool, fur, acrylic, Plexiglas, wooden board, plastic, resin and other Non-Metallic Materials .
Applicable industry
processing industries of lagerscale engraving and cutting, such as garment, leather, clipping, cutting of template, package and printing, advertisement decoration, building upholster, art gift, computer embroidery, paper prod ct, acylic product ,middle density board ect. nonmetal sheet precision cutting and other industries.
Application of laser key cutting machines :
| Material | Cut | Engrave |
| Acrylic | Plexiglass | Pmma| Perspex | ♦ | ♦ |
| Organic board | Double color plate | ♦ | ♦ |
| Wood | Bamboo | Veneer | MDF | ♦ | ♦ |
| Leather |Pig leather |Cow Leather |sheep leather | ♦ | ♦ |
| Fabric |Cloth | Textile | ♦ | ♦ |
| Wool Felt | ♦ | ♦ |
| Paper | Cardboard | Chipboard|Press Board | ♦ | ♦ |
| Ceramic | Tile| Marble | | ♦ |
| Plastic | ♦ | ♦ |
| Fiber glass | | ♦ |
Technical parameter:
| Name: | 1390 |
| Processing area | 1300mm*900mm |
| Laser power | 60W,80W,100W,130W |
| Laser type: | Sealed Co2 glass laser tube |
| Cooling mode: | Water cooling and protection system |
| Resetting positioning accuracy: | ±0.01mm |
| Compatible Software: | Laser cut 5.3, CorelDraw, AutoCAD, Photoshop |
| Whole machine size: | 1420mm*1020mm*1150mm |
| Engraving speed | 1-60000mm/min |
| Cutting speed | 1-10000mm/min |
| Cutting thickness | 0-20 mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Position system: | Red dot |
| Interface: | USB |
| Minimum shaping character | letter 0.8mm, Chinese 2mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Gross power | 1000W |
| Driving mode: | DC0.8A 24V stepper motor |
| Cooling mode: | Circulation water cooling |
| Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Driving system | stepper |
| Option: | Up and down table, rotary attachment |
| Packing: | wooden box |
| Guarantee time: | 1 year, laser tube 10months |
| Option: | Rotary attachment for column materials |
| Operation: | Video to tell customer how to operate the machine |
| Net weight: | 350KGS after package |

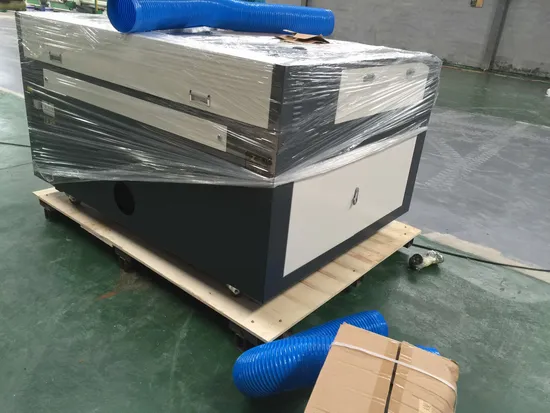

Packing List :
| Machine parts | Tools bag | ||||
| Name | Amount | Units | Name | Amount | Units |
| Water pump | 1 | set | Manual book | 1 | pcs |
| Air pump | 1 | pcs | Software CD | 1 | pcs |
| Power line | 2 | pcs | USB line | 1 | pcs |
| Smoke pipe | 2 | pcs | Silicone | 1 | pcs |
| Water pipe with Air pipe | 2 | pcs | Focus rular | 1 | pcs |
| centrifugal blower | 1 | pcs | Paper for adjusting laser light way | 1 | pcs |
| Inner hexagon spanner | 1 | set | Plugs and Socket | 1 | pcs |
