Swiss Type CNC Lathe with Double Spindle and Double Blade Row of Solid and Firm Quality

Product Description

P26- CNC Lathe with Double Spindle and Double Blade Row of Solid and Firm Quality
Product Description
Automation and Productivity High Level of Automation: These machines are often equipped with advanced CNC systems and automatic feeding devices, enabling long periods of unattended operation and reducing dependency on manual labor. Reduced Human Intervention: Automation features reduce the need for manual adjustments and operations, minimizing human errors and boosting overall productivity. Cost Savings Lower Scrap Rates: High-precision and stable machining capabilities reduce scrap rates, saving material costs. Reduced Labor Costs: The high level of automation decreases the need for skilled operators, reducing labor costs. Wide Range of Applications Multi-industry Use: These machines are suitable for producing high-precision parts in various industries, including medical devices, electronics, automotive components, and watchmaking. Ideal for Small Batch, High Variety Production: The flexibility and efficiency of Swiss-type lathes make them perfect for small batch, high variety production scenarios.
Product Photoes
Multi-process Integration: Besides basic turning, these machines can integrate other processes like milling, boring, and tapping, further consolidating production steps and reducing the need for transferring and re-fixturing parts between different machines.

Customization: The flexible tool configuration makes these machines highly suitable for customized production, allowing quick adjustments to tool setups to meet various machining needs.

Equipped with two spindles, simultaneous machining operations can be performed to improve machining efficiency and accuracy. One spindle is used for primary machining and the other for auxiliary or secondary machining.
Product Information

Processing parameters	Maximum processing diameter	φ26mm
	Maximum machining length 2.5D	50mm
	Maximum axial drilling diameter	M10mm
	Maximum axial tapping size	M8
	Max. spindle speed (short time)	10000rpm
	Max. back spindle speed (short time)	12000rpm
	Max. workpiece removal length	40mm
Maximum stroke	X1 axis	375mm
	Z1 axis	180mm
	X2 axis	375mm
	Z2 axis	180mm
Cutting tool	Size of cutter plate	390mm
	Maximum number of tools	8
	Tool (turning tool)	φ16X16
	Sleeve	φ25
	Height from tool plate holder to spindle centre	45mm
Collet	Spindle collet	HB26
	Back spindle chuck	HB26
Feed rate	X1/X2 axis feed rate	15m/min
	Z1/Z2 axis feed speed	15m/min
Motor	Spindle drive power	2.5/3.7KW
	Back-axis drive power	1.5/2.5KW
	X1 X2 Z1 Z2 power	1.1KW
	Cutting oil	0.4KW
Other	Spindle centre height	1010mm
	Air pressure flow	0.7mpa 0.5m3/min
	Main breaker capacity	40A
	Input power	5.4KW
	Weight	2700Kg

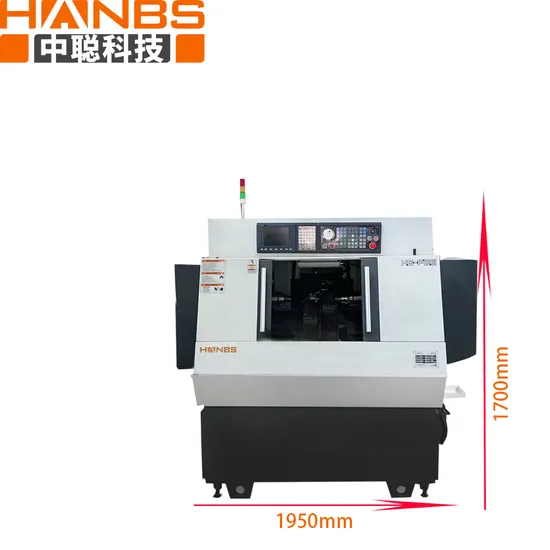

	Dimension	1950X1455X1700mm

Sample Display

Factory
Certifications
Shipping and Packing


Product Uses

The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
1. Equipment Cost Q: How much does a dual spindle dual gang Swiss-type CNC lathe cost? A: The price varies depending on the model and specific configuration. Please contact our sales team for detailed pricing. 2. Application Range Q: What types of parts are suitable for a dual spindle dual gang Swiss-type CNC lathe? A: This equipment is suitable for processing complex, high-precision parts, covering multiple industries such as automotive components, aerospace, and medical devices. 3. Operator Training Q: How long does it take to train operators? A: Basic operation training usually takes 1-2 weeks. We also offer ongoing technical support to ensure smooth operation. 4. Equipment Reliability Q: How reliable is the dual spindle dual gang Swiss-type CNC lathe? A: Our equipment is rigorously tested for high reliability and has a low failure rate. It comes with comprehensive after-sales service support. 5. After-Sales Service Q: What after-sales services do you offer? A: We provide equipment installation, operator training, regular maintenance, and emergency repair services. Our technical support team is always ready to assist. 6. Technical Specifications Q: What are the technical specifications of this CNC lathe? A: Technical specifications include machining precision, maximum workpiece size, and more. Please refer to the product manual or contact our technical support team for details. 7. Flexibility and Scalability Q: Can the equipment be upgraded or expanded to meet future needs? A: Yes, the equipment is highly flexible and scalable, and can be upgraded and configured according to future requirements. 8. Production Process Optimization Q: How does the dual spindle dual gang design optimize the existing production process? A: The design allows for simultaneous machining and multitasking, which reduces processing steps, increases machining precision, and improves overall production efficiency. 9. Tool Wear Q: Does simultaneous multi-tool operation increase tool wear? A: Simultaneous multi-tool operation distributes the load among the tools, which can reduce wear on individual tools and extend their lifespan. 10. Energy Consumption Q: What is the energy consumption of this CNC lathe? A: Energy consumption depends on the specific model and operational parameters. Please contact our technical support team for detailed information on energy efficiency. 11. Q: How to pay for?
A: T/T, L/C/, D/P and so on. If you have any other questions, please feel free to contact our sales or technical support team.
