Automatic Mixing Dosing Conveying System for PVC Door Extrusion Pneumatic Vacuum Conveyor

Product Description

Automatic Mixing Dosing Conveying System For PVC Door Extrusion Pneumatic Vacuum Conveyor
Application and introduction
Description:
Chiyu Automation company offering dosing systems of the raw materials, compatible and ideal automation process for production line and different capacities according to its customers budgets and needs.Dosing systems weigh the PVC formulation automatically in desirable ratio by load cell very precisely and transfer them into feeding silos.The automation process of this system could be watched and controlled through PLC control monitor.The ratio of PVC formulation which is used in production could be changed and rearranged by the buttons on the operator panel.
1.Maximum capacity and efficiency
2.Saving from time
3.Save handwork
4.Additives used in each product provides the same rate and ensures the continuity of product quality.
5.Reduce waste
We are offering dosing systems of the raw materials, compatible and ideal automation process for production line and different capacities according to its customers budgets and needs
In order to solve these problems, our company design this PVC automatic mixing weighing conveying system which the computer can automatically control weighing and batching, and feeding to extruder.the complete PVC mixing system consists of:
1.Loading station(PVC loader+Caco3 loader).
2.Pneumatic vacuum conveying system.
3.PVC/Caco3 storage silo.
4.Vacuum conveyor with automatic weighing system for mixer.

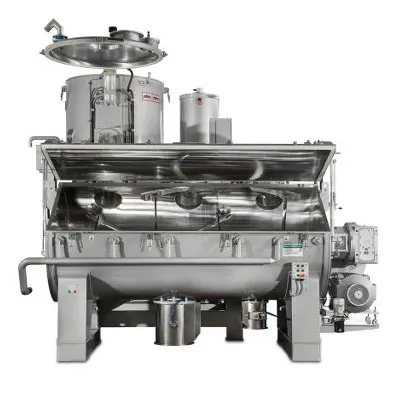

5.PVC mixer machine.
6.Compound storage silo.
7.Automatic feeding system for extruder.

no	item	quantity
1	PVC loading station	1set
2	CaCO3 loading station	1set
3	AUTO vacuum sucking and dosing system	1set
4	Additive loading and central de-dusting system	1set
5	5group non-dust loading silo	5set
6	LCS-50Kg additive auto dosing system	1set
7	Mixer group SRL-Z500/1000A and de-dusting system	1set
8	Dry blend vacuum sucking system	1set
9	PLC auto control system	1set
10	Electric wire cable and bridge, supplied by USER	1set
11	PAKAGE AND transportation cost	1set

Zhangjiagang City Chiyu Automation Equipment Co., Ltd focus on building bulk solid handling plant and supplying related machines and fabricated parts to plastic, chemical and petrochemical industry.
Our long suits are the best understanding of bulk material properties and the handling process. We are good at solving problems which exist in bulk solid conveying, storage, weighing, mixing and screening.
Meanwhile, offering optimal solutions and proposals of the whole project . Eventually,
Our company will provide you with an ideal project which acts according to your demands.With comprehensive experience, creative and innovative emotion.
We provide below machines and plants to domestic and international market:
1.High speed mixer and cooling mixer unit,capacity up to 2000 liters for hot mixer and 6000 liters for cooling mixer.
2. Automatic batch weighing and mixing System
3. High precision additives automatic weighing machine
4. Pneumatic conveying system includes: positive pressure conveying system and vacuum conveying system for powder & pellets.
5. Workshop dust removal and environmental protection equipment, etc.
6.Upgrading and transformation of industrial automation system
Automation of bulk material handling systems
Automation and storage, automation and discharge:
The storage of large bulk solids quantities is realised in silos, big-bags and containers, equipped with automatic discharge aids for a safe extraction of the required product amount from the container. In case of larger capacities the bags emptying is made automatically; at smaller discharge capacities the manual discharge process is usually supported by mechanical devices (like hoists ....).
Automation and conveying:
The application of automation technologies in the field of bulk solids transport - comprising both mechanical systems (screw conveyors, bucket elevators, chain conveyors...) and also pneumatic systems (conveying under overpressure and by vacuum, fluidized bed chutes...) - has a very strong impact on production and productivity. It allows to transport even very large bulk quantities in a reliable and safe manner over great distances without human intervention.
Automation and metering, automation and weighing:
In the field of metering and weighing the automation allows higher metering accuracies and has - besides of an productivity increase - mainly an impact on the product quality. Of great importance are the production records and batch protocols recorded and filed by the recipe management system.
Our aim
Total compliance with the technical demands and operating conditions taking into account operating costs and rates of return and wherever possible reducing investment costs.
