Claw Type Hard Plastic Granulator Machine Automatic Recycling Plastic Crusher Machine for Plastic Industry

Product Description

Claw Type Hard Plastic Granulator Machine Automatic Recycling Plastic Crusher Machine for Plastic Industry Product Description

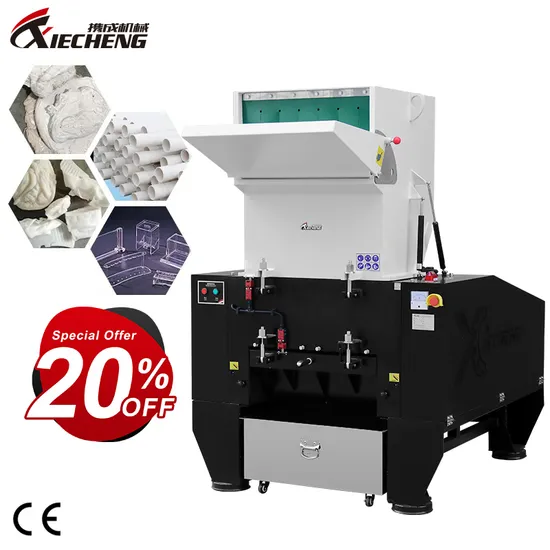

GY Claw Type Plastic Crusher
The claw type plastic crusher are especially suitable for larger and harder subjects like injection lump plastics, etc. Blade sets made by once cutting from steel plate, adopted with patent front-positioning blades design enlarging cutting angle and increasing cutting efficiency. Hence the output granules are even and with less powder or dust occurred. Models are divided into claw and flat types with wide applications.urred.
Features of GY series crusher:
▪ Versatility: It is suitable for granulating and recycling various types of plastic materials, including various plastic products, large plastic lumps, and rubber lumps.
▪ High efficiency: It demonstrates significant crushing effectiveness on materials with high hardness, enabling efficient processing of such materials.
▪ Customizability: Customized machine models specifically designed for glass fiber materials can be provided according to customer requirements, greatly enhancing the machine's lifespan.
▪ Reliability: The blade frame is made from a single-cut steel plate, resulting in higher strength and stability.
Product Specifications

Model		XC-GY10HP	XC-GY15HP	XC-GY20HP	XC-GY30HP	XC-GY50HP	XC-GY75HP	XC-GY100HP
		XC-GY10HP-SP	XC-GY15HP-SP	XC-GY20HP-SP	XC-GY30HP-SP	XC-GY50HP-SP	XC-GY75HP-SP	XC-GY100HP-SP
Grinding Chamber(mm)		360*260	420*260	480*330	660*350	720*500	910*820	1050*820
Grinding Capacity (KG/H)		200-400	300-500	350-550	500-800	800-1200	850-1300	1000-1500
Stationary Cutter		2	2	2	4	4	4	4
Rotary Cutter		18	21	24	27	27	30	33
Mesh Size (mm)		10	10	10	12	12	12	12
Power	KW	7.5	11	15	22	37	55	75
	HP	10	15	20	30	50	75	100
Dimensions (LxWxHxH1 mm)		1000*830*1270*960	1200*995*1540*1215	1300*1075*1725*1350	1500*1330*1880*1480	2000*1520*2470*1914	2420*2060*3220*2375	2420*2060*3320*2375
Approx. Net Weight (KG)		540	795	1040	1700	2750	5400	6250
Dimension for SP (mm)		1250*880*1475*1190	1420*1020*1760*1440	1500*1140*1920*1540	1750*1400*2140*1735	2150*1570*2770*2200	2590*2230*3610*2375	2590*2230*3610*2375
Collective Blower (KW)		2.2	2.2	2.2	3	4	5.5	7.5
Approx. N.W for SP (KG)		750	1180	1400	2280	3630	5900	6500

If you want more sizes, please contact us for details
CONTACT SUPPLIER
Actual Shooting
Product Details
01 High-strength Blades
1.The main spindle blade holder is made of 45# steel and undergoes quenching and tempering treatment.
2.The blade material is CR12MOV, with a hardness of 57-59 degrees.
3.The blades are installed using internal hexagon socket screws, which prevents the screws from wearing out due to prolonged use.
02 Soundproofing Design
The feeding hopper features a double-layer soundproof design on all four sides. The inner layer is made of stainless steel, and it is filled with soundproofing material in the middle. This design provides excellent noise reduction and ensures a quiet operation.
03 Chamber Cooling System
For machines with a power rating of 30HP or higher, a cooling system is included as a standard feature in the machine enclosure. This system allows the timely release of heat generated during the crushing process due to friction, thereby enhancing the machine's efficiency and lifespan.
04 Electrical Components
The equipment is equipped with globally renowned Siemens electrical components, ensuring the stability of its performance and providing a high level of safety and reliability.

Optional Accessories List
The standard Claw type plastic crusher offers the option to configure an automatic recycling and screening system. This system automatically recovers crushed materials, reducing the reliance on manual operations and thereby improving production efficiency. For models with a power rating of 75HP and above, the feeding hopper and screen frame are equipped with a cylinder system, which is now a standard configuration. For other models, you have the option to choose whether to add this cylinder system.
Application Range
The crushing effectThe Xiecheng GB Plastic bottle crusher machine is widely used in the rubber and plastic industry, including bottle blowing machines and blow molding machines. It is capable of directly crushing various shapes of hollow blow-molded barrels, including square and round PC/PET hollow blow-molded barrels, as well as mineral water bottles, gallon drums, paint buckets, chemical barrels, and more of various sizes. Additionally, this bottle crusher exhibits outstanding processing capability, with the ability to directly crush hollow barrels of up to 200 liters in size.
