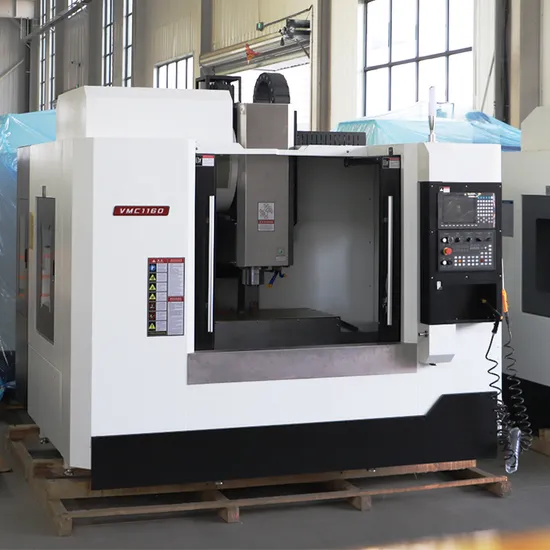

Three Axis VMC1160 Milling Machine with CNC-Lathe Turret CNC Vertical Machining Center

Product Description

three axis vmc1160 milling machine with cnc lathe turret cnc vertical machining center Product Description
Features:
Taiwan spindle Germany R+W coupling Taiwan ball screw and locking nut Automatic lubrication system
Taiwan pressure cylinder Chip conveyor at optional
Japanese NSK bearing High quality resin sand Product Parameters

SPECIFICATIONS	Units	VMC1160
Table size	mm	1200*600
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Max. worktable load	kg	1000
T slot(number-width*pitch)	-	5-18*125
Max. spindle speed	rpm	8000
Spindle taper	BT	BT40
Main motor power	kw	11
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-8000
Guide rail type	-	Linear rail
Distance from spindle axis to column surface	mm	650
Distance between spindle nose and table surface	mm	100-700
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine	-	Arm 24
Max. tool diameter	mm	78/120
Max. tool weight	kg	8
Machine weight	kg	7000
Overall dimension	mm	3400*2500*2960

https://focus-machiner.en.made-in-china.com/product-group/RofALOqVCIke/Machining-Center-catalog-1.html Detailed Photos
Our Advantages
Dear customer, by choosing our CNC machining center, you will receive:
1.-High precision machining:cutting-edge CNC technology ensures sub micron level accuracy and meets strict industry requirements.
2.-Efficient productivity:Rapid processing speed and intelligent management system greatly improve production efficiency and market responsiveness.
3.-Reliable and stable:Durable materials and strict quality control ensure long-term stable operation and reduce maintenance costs.
4.-Flexible adaptability:Diversified processing paths and tool configurations to adapt to various materials and personalized needs.
5.-Green environmental protection:energy-saving design and emission reduction measures help achieve environmental goals and promote sustainable development.
Our CNC machining center is your ideal choice for improving manufacturing quality, efficiency, and sustainability. Looking forward to working with you to create excellence together.
Shandong Focus Machinery Co., Ltd. Shandong Focus Machinery Co., Ltd. is located at No. 988, Xingteng East Road, Economicand Technological Development Zone,Tengzhou City, Shandong Province, China. lt hasmany years of experience in exporting machinery and tools. The main exported equip.ment includes: machining centers, CNC milling machines, CNC lathes, universal millingmachines, turret milling machines,rotary head milling machines, drilling machines, sawingmachines, etc. We have won a good reputation from customers all over the world with our high qualityand first-class after-sales service. In order to ensure quality, we carefully select raw material suppliers, use advanced manu-facturing and processing equipment,improve production processes, and test machinetool performance in multiple dimensions. We keep in mind that only hiah-quality machinetool equipment and tools, the most competitive prices, and perfect after-sales service arewhat customers need most. So wehave always abided by it. FAQ
Q1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . Q2: Where is our factory located? How can I visit there? A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone, Tengzhou City, Shandong Province, China. Q3. What is your trade terms? A : FOB, CFR and CIF all acceptable. Q4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the machine, we will send machine photo and video for you to confirm. Q5: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) Q6.the warranty? The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for you within 48 hours.
