MDF Board Laminating Machine /Short Cycle Fast Hot Press Machine

Product Description

MDF Board Laminating Machine /Short Cycle Fast Hot Press Machine
Melamine Press Machine
This is 2000ton Hydraulic press machine, for laminating Melamine on MDF board, or Particle board. It is one floor, and with high pressure, fast to laminating melamine paper on the panel surface. For the melamine press machine, it also can be designed to be different pressure, such as 1600Ton, 2400Ton, 2800Ton or as others
One set hydraulic melamine hot press machine, mainly consist of hydraulic system, electric system, hot plate, and others.
So our melamine hot press machine, we can make sure it is high quality and strong and heavy, it can help you produce high quality laminated MDF board for you.
For laminating melamine on MDF board or Chipboard, you can choose to input plywood by manual, or equipped with the auto loader. For example, if equipped auto loader and auto unloader, then just need 1 worker will be enough, it will automatic infeeding the MDF board, after pressed, it will automatic cutting the panel edge, and automatic blow its surface dust, and automatic stack MDF. so the whole production process will be high efficiency.

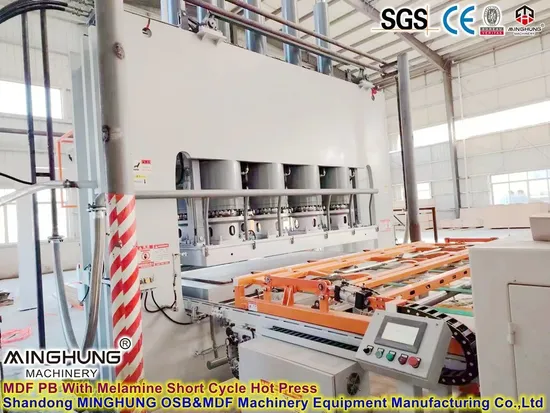

Detailed Photos
Particle board melamine short cycle hot press is a revolutionary technology that has transformed the manufacturing process of medium-density fiberboard (MDF) with melamine. This advanced technique offers numerous benefits to the industry, including increased efficiency, improved quality, and reduced production time. In this article, we will delve into the details of particle board melamine short cycle hot press and explore how it has revolutionized the production of MDF.

Particle board melamine short cycle hot press is designed to significantly enhance the efficiency of MDF production. With this technology, the entire process is streamlined, allowing manufacturers to achieve higher production rates without compromising on quality. The short cycle hot press ensures faster curing of melamine resin, reducing the total production time and increasing the output capacity of the manufacturing unit.


Product Parameters

Name	Melamine hot press machine
Pressure	2000 Ton
Mainly oil cylinder	φ360*250mm*8pcs
Hot plate size	1400*2600*150mm
Floors	1
Suitable panel size	4*8feet
Opeating oil pressure	≤25Mpa
Electric control	plc + touch screen
