Xn Aluminum Light Steel Keel Drywall Omega Profile Roll Forming Machine

Product Description

XN Aluminum Light Steel Keel Drywall Omega Profile Roll Forming Machine
china manufacturer

Product Description

1. Our advantageous:
1: Factory direct supply price.
2: We have exported for more than 10 years.
3: Our customer are from about 34 countries.
4: We have the professional research team. We can make the machine according to your requirement.
5: High-end and high-grade design
6: Free technical support and Free accessoies supply.
2.Main parameter of kexinda stud and track roll forming machine

Technical parameters:
1	Name of commodity & specification	Stud and track roll forming machine
2	Main motor power	3kw, 3 phase
3	Hydraulic motor power	3kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-1.2mm
12	Productivity	8-12m/min
13	Roll Station	11
14	Roller Diameter	70mm
15	Roller material	45# steel
16	Cutter material	Cr12 , quenched
17	Cr-Plating Size	0.05mm
18	Overall Size	3000×800×1000mm
19	Total Weight	2T
20	Components	Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set

Equipment components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting, run out table

Detailed Photos

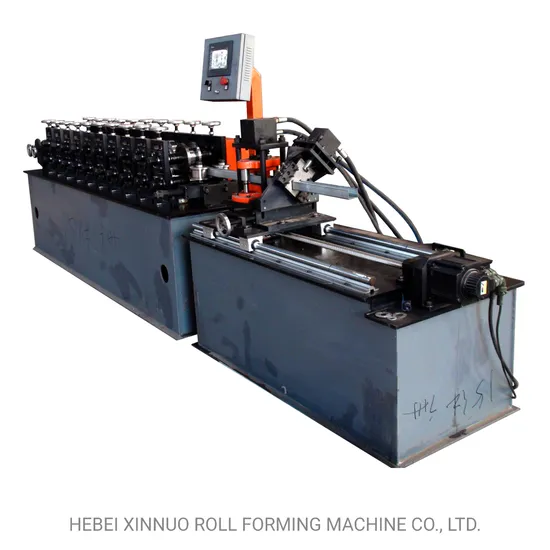

3.the picture of the stud and track roll forming machine

Our Advantages

Company Profile

Packaging & Shipping


Main machine is nude, the computer control box is packed with wooden fram
FAQ

5.FAQ
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
