Automatic Small Processing Plant Tomato Paste Production Line Tomato Juice Powder Processing Machine Tomato Sauce Ketchup Making Machine

Automatic Small Processing Plant Tomato Paste Production Line Tomato Juice Powder Processing Machine Tomato Sauce Ketchup Making Machine

US$58,000.00-98,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Antler-FQ1
Type
Fruit Processing Line
Voltage
380V
Customized
Customized
Product Name
Tomato Paste Processing Machine
Material
304 Stainless Steel
Capacity
0.5-20tons/H
Package
Wooden Case
Final Product
Tomato Paste/ Double or Triple Concentrate
Advantage
Easy Operation
Feature
High Efficient
MOQ
1 Set
Application Scope
Fruit Processing Industries
Certification
ISO 9001/ CE
Weight
5800kg
Core Components
PLC, Engine, Motor, Gear, Pump
Warranty of Core Components
1 Year
Degree of Automation
Turnkey Solution
Year
2025
Transport Package
Standard Wooden Box
Specification
Customized
Trademark
ANTLER
Origin
China
HS Code
8438600000
Production Capacity
2000sets/Year

Packaging & Delivery

Package Size
1200.00cm * 1000.00cm * 280.00cm
Package Gross Weight
2900.000kg

Product Description

Product Description

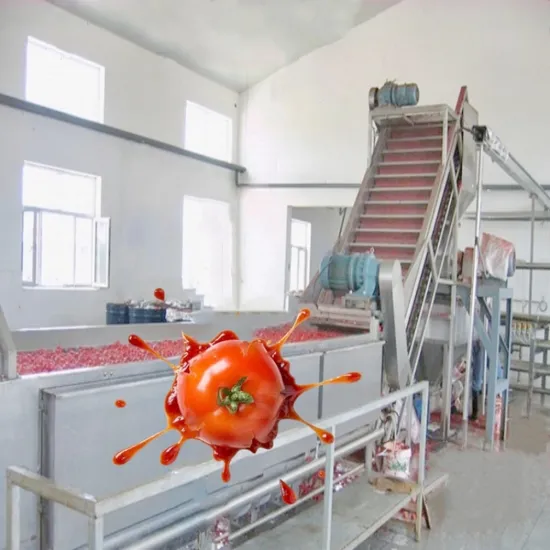

Description of Tomato Paste Processing Line
1. Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing
and sorting section,crushing and pulping section, concentrating section, pasteurizing or sterilizing section, aseptic filling section,
auxiliary energy section.
2. Production capacity includes 40 tons, 60 tons, 100tons, 150 tons, 300 tons, 400 tons, 500 tons, 600 tons, 800 tons, 1000 tons,
1200 tons and 1500 tons of fresh tomatoes per day.
3. The tomato paste concentration rate is 28%, 30%, 32%, 36% ,38%.
4. Tomato paste can be filled into aseptic bag in drum or can, also can be further processed to ketchup, sauces, juices in tin
can/bottle/pouch, etc.
Production process
Product details
The final products and package types of tomato processing line
1.Concentrated tomato paste: 28-30% Brix hot break and 36-38% Brix cold break filled into aseptic bags (5kg-1000kg) and
tin cans (100g-2500g) and sachets (5g-100g)
2.Tomato puree: Fresh tomatoes after washed, sorted, crushed, blended, or milled to a thick liquid, but with no significant
substance added or removed, the Brix value 4-6% Brix. The tomato puree can also be filled into pouches, tin cans, bottles or
tubes.
3.Tomato sauce: Use concentrated tomato paste as raw material, mixed with water, sugar, salt, seasonings and other ingredients
and make it into 12-24% Brix tomato sauce, then filled into small containers like PET/glass bottles, tin cans, sachets, brick cartons,
pouches and other packages.
4.Tomato Juice: the processing flowchart is similar to tomato ketchup or tomato sauce. But the tomato juice has a lower viscosity
and it is a beverage and can drink directly.

Product Parameters
Raw material Fresh tomato or other similar fruit
Final product Tomato paste/ketchup/juice
Packaging Sachet / spout pouch / plastic or glass bottle/ metal can / aseptic drum
Processing capacity Small size 100-500kg/h
Medium size 1000-5000kg/h
Large size 5T - 20T/H
Voltage 380V 50Hz (to be customized)
Power consumption As per capacity

Small line
Large scale line
Application
Company Profile
Antler Automation Equipment (Suzhou) Co., Ltd.is one of the most experienced manufacturer for dairy, fruits & vegetables,
and beverages processing equipment in food industry.We are capable of design and produce turnkey project for UHT /pasteurized
milk & yogurt, concentrated and powder milk, fruit juice & concentrate ,bottled water and beverages etc.
We focus on innovative food and beverage process technology and mechanical manufacture technology, from standard plant
systems to customized solutions, designed to meet optimum hygiene and quality standards, while operating efficiently and sustainably.
As a true producer and partner of clients and relations who are professionally involved in food and beverages project and who rely
on continuous precision and high services for project design, equipment manufacturing and commissioning, and also staff training.
Our technical expertise is complemented by project management, planning and cost control services to help our customers achieve
flexible and cost-effective food production.
Certifications
Packaging & Shipping

FAQ
1. Are you a manufacturer or a trading company? We are a professional manufacturer of food & beverages processing machine.
2. What's the price of your machines? Please contact us for further communication, we shall make you an offer. 3. What is the payment terms? T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, 100L/C at sight before shipment. 4. What is the supply scope? We can provide you with turnkey project for complete dairy,fruit and vegetables processing machine. Along with project design and basic formula. 5. What is the workshop size required? The production line can be put in straight line and also can change the direction according to your factory size. We can design the layout according to your factory size. 6. What's your Warranty time? Our warranty is 2 years after delivery.
