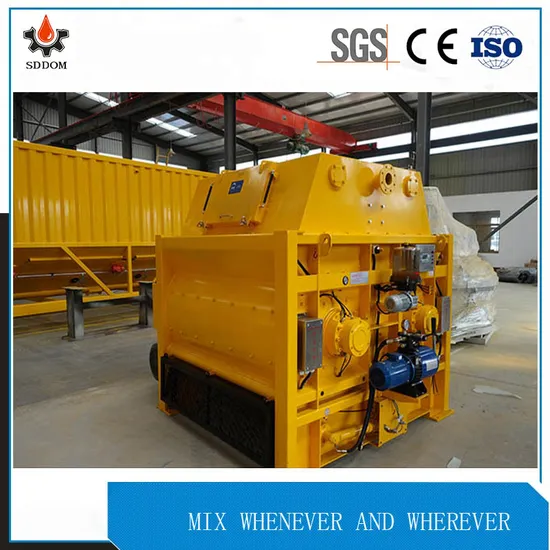

Small Size Portable Js1500 Twin Shafts Concrete Mixer for Sale
| US$20,358.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JS1500
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
75m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Charging Capacity
1250-2000L
Discharging Capacity
1250L-2000L
Motor Power
2X22kw
Mixing Time
<40s
Mixing Axle Rotation Speed
29.67r.Min
No. of Mixing Arm
16
Max.Diameter of Aggregate
60/80mm
Weight
5300kg
Lubrication Oil Pump Motor Power
0.09kw
Hydraulic System Motor Power
2.2kw
Transport Package
Standard Packing
Specification
3000x2100x2000mm
Trademark
SDDOM
Origin
China
HS Code
8474310000
Production Capacity
100sets/Month
Product Description
Small Size Portable Js1500 Twin Shafts Concrete Mixer for Sale| Parameter | ||||||
| Model | JS750 | JS1250 | JS1500 | JS2000 | JS3000 | JS4000 |
| Charging capacity(L) | 1200 | 2000 | 2400 | 3200 | 4800 | 6400 |
| Discharging capacity(L) | 750 | 1250 | 1500 | 2000 | 3000 | 4000 |
| Production capacity(m3/h) | 42 | 75 | 90 | 120 | 180 | 240 |
| Mixing axle rotation speed(r/min) | 29.9 | 29.67 | 26.75 | 23.5 | 23.4 | 22.85 |
| Mixer motor power(kw) | 2*15 | 2*22 | 2*30 | 2*37 | 2*55 | 2*75 |
| Librication oil pump motor power(kw) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Hydraulic system motor power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Electromagnetism valve power supply(V) | DC24 | DC24 | DC24 | DC24 | DC24 | DC24 |
| Mixing time(s) | <=40 | <=40 | <=40 | <=40 | <=45 | <=45 |
| No. of mixing arm | 12 | 12 | 16 | 16 | 18 | 22 |
| Max diameter of aggregate(Detritus/Pebble) | 60/80 | 60/80 | 60/80 | 80/120 | 100/150 | 100/150 |
| External dimensions(LxWxH) | 2900x 2650x 2100 | 3000x 2750x 2100 | 2900x 3000x 2150 | 3450x 3000x 2150 | 3900x 3300x 2230 | 4500x 3310x 2230 |
| Transportation dimensions(LxWxH) | 2900x 2100x 2100 | 3000x 2100x 2100 | 2900x 2320x 2150 | 3450x 2320x 2250 | 3900x 2600x 2230 | 4500x 2600x 2230 |
| Entire machine weight(kg) | 5000 | 5300 | 6500 | 7500 | 9300 | 11800 |
| Introduction |
1.The mixing blade and lining board use wear-resisting-material. They have a long service life and they are convenient to dismantle and replace.
2.Driving device and shaft end sealing device using technical of ITALY
3.Discharging gate is controlled by hydraulic oil pump.
4.The mixer is reasonably designed with short mixing time, low consumption, low noise and long service life.
5.The air operated discharging is convenient and quick. There is a hopper, under the discharging gate, which is fit to the concrete mixing truck to make the discharging quickly.
6.The shaft bearing is apart from the shaft sealing which has six measures to prevent leakage.
7.The sealing parts are specially managed and well manufactured with a long service life and reliable performance.
