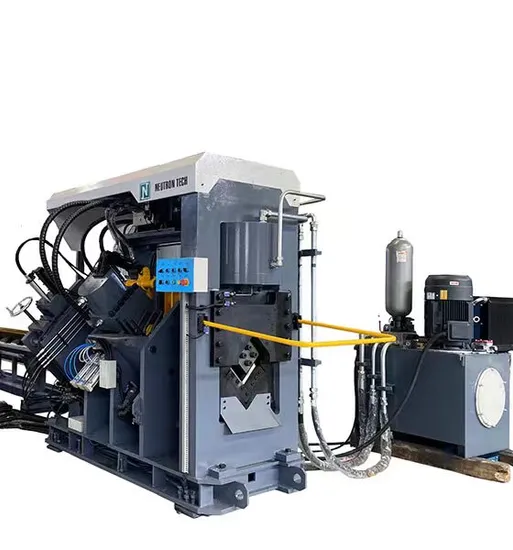

CNC Hydraulic Punching Marking and Cutting Machine Angle Steel Processing Machine

Product Description

Product parameters
1. Technical specification of APM1616 1.Angle size: ∠40×3 ~ ∠160×16 (Q345)
2.Max. punching diameter: φ26mm
3.Nominal punching force: 950kN 4.Norminal marking force: 1030kN
5.Nominal Cutting force: 3000kN
6.Max. length of the raw angle: 12m
7.Quantity of punching head per side: 3
8.The quantity of punching row per side: arbitrariness
9.Quantity of character group: 4 group
10.Dimension of characters: 14×10x19mm
11.Cutting mode: Single-blade cutting
12.Quantity of axes: 3
13.Infeeding speed : 40m/min
14.Overall dimension: 27×7×2.2m(Only for reference)
15.Weight: Approx. 16t
16.The finished angle conveyor is rotated to one side by pneumatic power, the max. length of finished angle is 8 m.
17.There are four sets of transverse conveyor, infeed automatically and intermittently.
18.Type of programming: keyboard input, USB interface input, floppy disc input.
1.Layout: type
1.Working environment:
2.Working temperature: 0ºC ~ 40ºC
3.Power: Three phase four wire system
4.AC Voltage: 380V
5.Fluctuation of voltage: ±10%
6.Frequency: 50 Hz
Product display
Customer visit
Certifications
Company information
Packaging & Shipping
FAQ:
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
