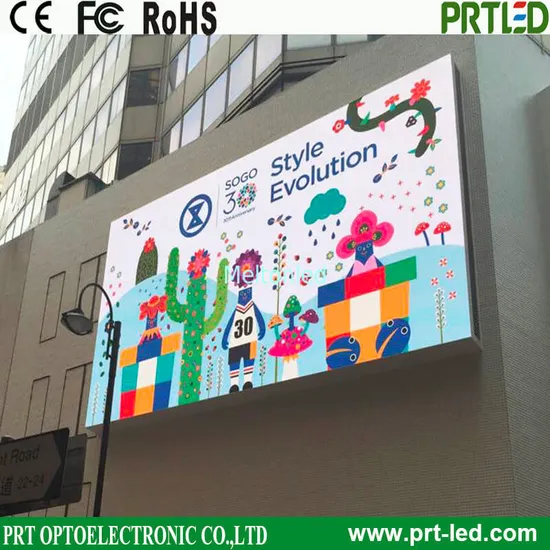

Front Service Video Wall, Advertising Full Color Screen Outdoor Digital Billboard, High Brightness SMD P4, P6, P8, P10 LED Display Module with RoHS (320X320mm)

Product Description

Outdoor led display panel with front access modules,high brighness, good waterproof,IP67
Product Features:
1. SMD led encapsulation confirm wide view angle and energy-saving,
2. Front access module design makes fast draw out and front maintenance.save much space for mounting
3. With excellent mask design for better protect the leds,and with good anti-reflection for high contrast ratio
4. Die-casting craft aluminum cabinets makes the light weight and longer life time with good rust-proof and good heat dissipation
5. Energy-saving design with low power consumption,save much cost of power supply
6.Apply to wall-mounting led signs,Pillar led screen,Embedded led wall,Monument led board,Pylon led signs etc.
7. This kind of module design suit for outdoor P4,P5,P6,P8 and P10
8. Related parameters as below for reference,contact us for details.

Model No.	P4	P6	P8	P10
Pixel Pitch	4 mm	6 mm	8mm	10.0mm
Pixel Density (dots/sq.m)	62500	27777	15625	10000
LED component	SMD2727	SMD2727	SMD2727	SMD2727
Module Size	320 x 320 x 17mm	320 x 320 x 17 mm	320 x 320 x 17 mm	320 x 320 x 17 mm
Module Resolution (dots)	80 x 80	60 x 60	40 x 40	32 x 32
Panel Size	960 x 960 mm	960 x 960 mm	960 x 960 mm	960 x 960 mm
Panel Weight (Al frame)	35 kgs	35 kgs	35kgs	35 kgs
Brightness	≥5500nits	≥5500nits	≥5500nits	≥5500nits
Best viewing distance	≥4 m	≥6 m	≥8 m	≥10 m
Maximum power consumption	≤700W/sq.m	≤650W/sq.m	≤550W/sq.m	≤550W/sq.m
Driving method	1/10	1/16	1/5	1/ 2
View angle	140º(H) / 140º(V)
Maintenance	Front & Rear
Control method	Synchronous/wireless control system
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 95%
MTBF	10,000 hours
Frame Frequence	50/60Hz
Refresh Frequence	>1920Hz
IP grade	IP65
Effective Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

More pictures for reference:
This kind of products produced according to international standards CE,ROHS,FCC,EMC,UL etc,
Why choose PRT? PRT is a professional manufacturer of LED display screens more than years. We have strong R&D team to ensure high end products with user-friendly design ,and often updated to meet different requests Our prices are high competitive due to our large-scale procurement of raw material. We can help you to win more orders if you are distributors.also the end users will also be satisfied with our quality and price. We have CE, FCC and RoHs certifications to confirm the quality. our products have been sent out to more than 50 countries .We have rich experience in handling all problems when you import goods from China . We have a wide variety of products for you to choose from P0.9mm to P10mm for indoor,and P2.6 to P16 for outdoor.All products are strictly tested before release to next process, and we test every LED screen 72 hours before delivery. Our salesmen/saleswomen have gotten well training to provide customers with professional advice on specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested. We offer 2-3 years warranty and life time maintenance .Even after warranty time expired , we will only charge material costs
