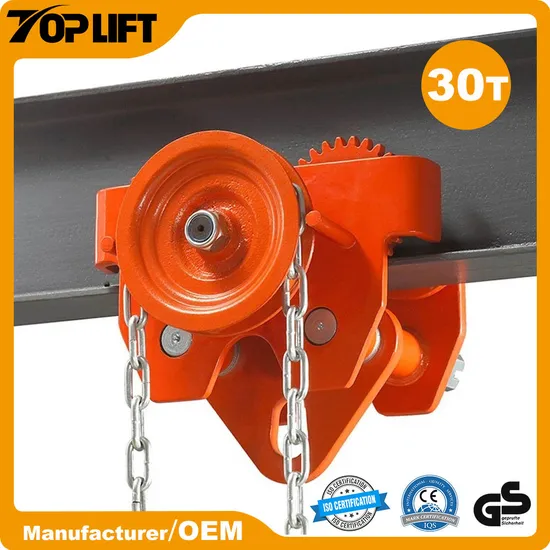

Toplift OEM Factory Hand Chain Single Lifting Gear Geared Beam Trolley 30t
| US$20.00-100.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
MG
Sling Type
Chain
Lift Speed
>8m/min
Maximum Lifting Height
3m
Chain Falls
1
Certification
CE, ISO9001:2000, GS
Condition
New
Rated Load
30t
Chain
as Required
Adjustable Width
175-305mm
Wheel Design
Smooth Rolling Wheels
Safety Feature
Braking System
Application Range
Warehouses, Factories, Construction Sites
Transport Package
Carton Then on Pallet
Specification
30T
Trademark
TOPLIFT/OEM
Origin
Zhejiang
HS Code
84269900
Production Capacity
10000 PCS/Month
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 30.00cm
Package Gross Weight
20.000kg
Product Description
30T Manual Lifting Geared Trolley For Chain Block1.Double shafts design
2.Reasonable load and run stably
3.Suitable for various profiles,both for flat and bevel flanges
4.Continuously adjustable lower flange geared trolley for 3M beam height
| Model | Rated Load(Ton) | Test Load(Ton) | I-Beam recommended(mm) | I-Beam recommended(mm) | A | B | C | D | E | F | G | H | J | K | L | M | Weight(kg) | ||
| a | b | a | b | ||||||||||||||||
| MG-0.5T | 0.5 | 0.75 | 50-152 | 50-203 | 108 | 322 | 200 | 190 | 108 | 53 | 94 | 18.5 | 78 | 57 | 37 | 14 | 24 | 10.0 | 10.5 |
| MG-1.0T | 1.0 | 1.5 | 64-203 | 64-305 | 115 | 436 | 238 | 211 | 115 | 59 | 120 | 24 | 90 | 66 | 40 | 16 | 28 | 14.5 | 16.0 |
| MG-2.0T | 2.0 | 3.0 | 88-203 | 88-305 | 130 | 445 | 274 | 236 | 130 | 69 | 136 | 26 | 105 | 75 | 44 | 17 | 34 | 22.0 | 24.0 |
| MG-3.0T | 3.0 | 4.5 | 100-203 | 100-305 | 164 | 459 | 314 | 295 | 164 | 82 | 150 | 33 | 130 | 96 | 60 | 17 | 34 | 30.0 | 38.0 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| MG-10T | 10.0 | 15.0 | 124-203 | 124-305 | 378 | 525 | 480 | 460 | 237 | 130 | 198 | 55 | 189 | 150 | 90 | 27 | 57 | 88.0 | 94.0 |
| MG-20T | 20.0 | 30.0 | 136-203 | 136-305 | 240 | 600 | 565 | 495 | 240 | 148 | 268 | 55 | 255 | 175 | 110 | 56 | 80 | 165 | 215 |
| MG-30T | 30.0 | 45.0 | - | 175-305 | - | 673 | 625 | 564 | 258 | 164 | 296 | 60 | 255 | 196 | 125 | 76 | 90 | - | 230 |
| MG-50T | 50.0 | 75.0 | - | 175-305 | - | 673 | 625×2 | 564 | 258 | 164 | 296 | 60 | 255 | 196 | 125 | 76 | 90 | - | 610 |
parts
Packing
Our Products
FAQ
1. Do you provide OEM service?
Yes, of course. We have professional designers to help your design the brand.
2. How to get samples to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
3. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
4. what's the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.
