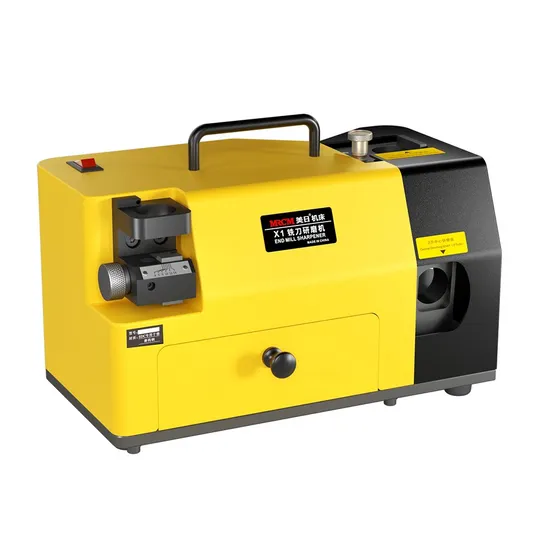

End Mill Sharpening Machine with Carbide Wheel Mr-X1

Product Description

End Mill Sharpener MR-X1
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the Hss material.
Specification:

Model:	MR-X1
Diameter:	Φ4-Φ14mm
Power:	220V/160W
Speed:	4400rpm
Point angle:	3°
Dimension:	35*25*25cm
Weight:	14KG
Standard Equipment:	Grinding wheel :SDC (for carbide)×1
	Six collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
	Two collet chucks: 2,4 flutes ×1 piece; 3,6 flutes×1 piece
Optional Equipment:	Grinding wheel :CBN (for HSS)

Details:

MR-X1
END MILL SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are
small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Two -flute, three-flute,four-flute grinding sample
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.
EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.
EASY FOR END MILL GRINDING
According the the grinding hole, insert the chuck.
It is very clear to see the grinding position when open the cover of grinding wheel.
Standard accessories:

Grinding wheel ×1 piece Standard is SDC for carbide material	Collets ×6 pcs (Φ4-Φ14mm)	Collet chuck ×2 piece

Packaging & Shipping
EXPORTING PACKAGE, SAFE AND STABLE
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
