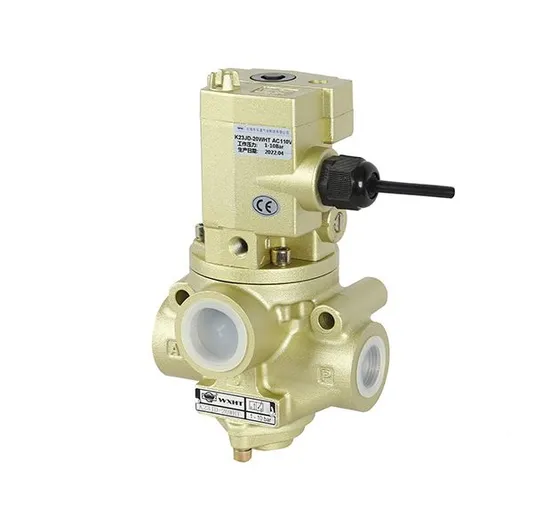

High Flow Rate Electric Valve Directional Control K23jd-15wht Poppet Solenoid Valve

Product Description

Product Description
Huatong Pneumatic K23JD-15WHT two-position three-way cut-off electric control directional valve solenoid valve,
K23JD-15W large diameter 2 inch 2-1/2 inch pneumatic solenoid directional valve Poppet Valves Inline Mounted High Flow Rate.
Specification:

type		K23J- 8W	K23J- 10W	K23J- 15W	K23J- 20W	K23J- 25W	K23J- 32W	K23J- 40W
Item
Flow rate(m3/h)		5	7	10	20	30	40	50
Effective sectional area(mm2)		20	35	60	120	190	300	400
Leakage rate(cm3/min)		≤50	≤100		≤200		≤300
Direction diverting time(sec)		≤0.04	≤0.06		≤0.10		≤0.15
Switch-over frequency Hz		≥10	≥8		≥4		≥3
Working pressure(MPa)		0.2~0.8
Voltage(V)		AC:380,220,110,36: DC:220,110,24
Working temp. (ºC)		-5~50

Outlook & Dimension:
Instudry Application

Outlook & Dimension

Type

Dia

Port Size

A

B

C

D

E

F

G

H

M

L

O

G

K23J-8W. K23J-8TW

Ø8

G1/4

180

96

78

73

17

16.5

Ø9

45

39

85

G1/2

K23J-10W. K23J-10TW

Ø10

G3/8

K23J-15W. K23J-15TW

Ø15

G1/2

K23J-20W. K23J-20TW

Ø20

G3/4

195

113

89

82

24

21

Ø9

52

38

105

G1

K23J-25W. K23J-25TW

Ø25

G1

K23J-32W. K23J-32TW

Ø32

G1¼

268

165

121

118

37

46

Ø13

75

46

170

G1½

K23J-40W. K23J-40TW

Ø40

G1½
