Feeding System Pig Feed Chicken Food 10000 Ton Grain Flat Bottom Metal Silos in Kenya Uganda

Product Description

Galvanized Steel Silo Grain Storage 10000ton Grain Silo for Farm Product Description

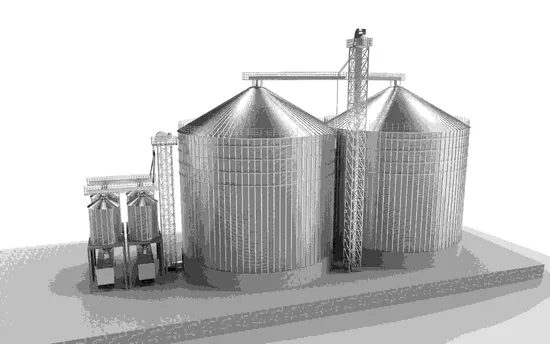

FLAT BOTTOM SILO:
Flat bottomed steel plate silos are widely used, generally for large diameter and large capacity silos. This form of construction is easy and cost-effective. The discharge method can adopt fluidized discharge, porous discharge, flat bottom sweeping machine discharge, manual clearance, or cement cone bottom method to achieve self flow discharge. This form of steel plate silo is mostly used in grain processing and storage industries such as oil, feed, flour, starch, brewing, ports, and grain depots.
Features:
Simple structure
Large capacity
There are multiple ways to exit the warehouse
Easy maintenance
HOPPER BOTTOM SILO:
The cone bottom steel plate silo stores materials that flow out of the silo, with good self-cleaning effect and no residue. This silo is suitable for industries such as seeds, flour, aquaculture, and chemical industry that have moderate reserves and are frequently cleared. The steel support structure of the cone-shaped steel plate silo is sturdy and the cone-shaped bottom has high strength. There are three types of cone bottom slopes: 40 °, 45 °, and 60 °. The 60 ° cone bottom steel plate warehouse is suitable for storing particles and powder materials with high viscosity.
Features:
Self discharge from silo
No need for manual labor
energy conservation
Low concrete foundation cost

item	value
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms, feed mill factory, Poultry feed
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	silo
Condition	New
Material	Steel
Place of Origin	China
Weight	5000KG
Warranty	1 Year
Product name	Paddy storage silos silo intake system 5000 tons grain storage silos
Silo Materials	Hot Galvanized Steel
Bottom Type	45-60° Hopper Cone
Silo Life	25-50 Years
Auxillary System	Conveying System
Installation and Debugging	Engineers Service Overseas
Galvanized Coating	275g/m2
Capacity	100-1000ton
Delivery date	100% On-time Delivery Rate
After-sales Service Provided	Field installation, commissioning and training
