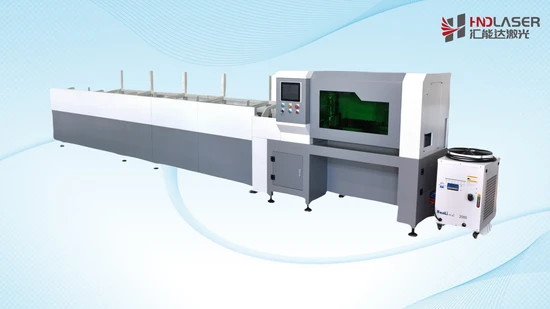

Advanced Tube Fiber Laser Cutting Machine for Precision Tube Fabrication

Product Description

Product Description



Product Parameters
Parameters of the whole machine

Category	Attribute	Parameter
Machine Attributes	Equipment series	G7
	Size(mm)	8500*1800*1800
	Total weight (ton)	2.7T
	Full power consumption of the whole machine (KW)	20~25
	Operating temperature (ºC)	0-40
	Cutting material	Carbon steel, stainless steel, aluminum alloy, copper, brass, etc
	Cutting function	Cutting
Processing range	Processing stroke (mm)	Round tube: ¢15- ¢70
	Cutting seam width (mm)	0.1-0.2
Acceleration	Maximum acceleration on X/Y axis	1.5G

Technical parameters of components

Component Name	attribute	Parameter values
Laser	Output power	1500/2000/3000W
	Working mode	Continuous optical fiber
	Fiber diameter	50μm
	Cooling method	Water-cooling
	Cutting material	Metals such as carbon steel, stainless steel, aluminum alloy, copper, brass, etc
Machine bed	Structure	Pipe plate welding
	Length	Optional

Key component configuration

Serial number	Component Name	Brand	Model/Origin
Key components
1	Fiber laser	Raycus(optional)	China
2	Cutting head	OSPR/BOCU(optional)	China
3	Motor	INOVANCE/YASKAWA(optional)	China/Japan
4	Laser specific chiller	Hanli/Teyu	famous Chinese brand
5	Electronic control components	Schneider,France	China
6	Pneumatic components	AIRTAC, Taiwan	China
Processing components
7	Main bed	HND Laser	China
8	Chuck	HND Laser	China
9	Loading and unloading system	HND Laser	China
Special CNC cutting system
10	Operating system	Shanghai Bochu	Bus System/China
11	Nesting software	Shanghai Bochu	3D pipe cutting specialized software/China
Other
12	Packaging and transportation	Standard packaging	Standard configuration

Our customers
Certifications
Laser Cutting Machine SGS Certified
(Customizable to fit your specific needs)
Experience the pinnacle of assurance with our superior laser cutting machine, proudly adorned with the prestigious SGS certification. This esteemed accolade is a testament to our unwavering commitment to excellence, assuring our clients that the machinery is engineered to perfection, excelling in both mechanical efficiency and global safety standards. For the discerning business leaders, managers, and operators, this certification symbolizes an unyielding pledge to reliability and sophisticated safety, ensuring seamless operations and the utmost peace of mind with each application.machinery not only excels in mechanical efficiency but also strictly adheres to the highest safety and stability standards worldwide. For business leaders, managers, and operators, this represents a crucial commitment to reliability and security, ensuring smooth operations and peace of mind with every use.
Packaging & Shipping
Our state-of-the-art laser tube cutting machines have effortlessly crossed international boundaries, serving over 50 countries globally. We ensure that your products are delivered with the utmost care, securely and efficiently to your designated site, no matter where you are in the world.

Company Profile
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD HNDLaser Technology Co., Ltd. is recognized as a prestigious national high-tech enterprise driven by HNDLaser situated in the vibrant Zhangjiagang. We lead the charge in the research, development, production, and application of advanced laser solutions, with a diverse portfolio that includes Zhangjiagang HND Intelligent Equipment Co. and other distinguished enterprises.
Our dedication to innovation is reflected through substantial annual investments in R&D, which have garnered widespread market acclaim. This commitment guarantees consistent production output, covering the entire laser industry spectrum. HNDLaser remains firmly rooted in the philosophy of being people-centered, propelled by cutting-edge scientific and technological innovation. By focusing on groundbreaking innovation and nurturing talent development, we have laid a firm foundation for increasing our market presence and elevating product recognition.

After Sales Service
A. Pre-Sales Service
1. Technical Consultation: We promise to deliver thorough, professional technical and pricing assistance within two hours tailored to your needs. We can also swiftly dispatch relevant samples and detailed product information, addressing your inquiries about processing table size, precision, cutting thickness, and operating costs related to cutting parameters.
2. Site Visits: We warmly welcome you to visit our facilities for inspections, offering a convenient and hospitable experience from any location.
B. After-Sales Service
1. We have established a comprehensive after-sales service network to monitor customer feedback around the clock, ensuring your satisfaction.
2. From the moment of purchase, you receive complimentary access to a suite of technical training sessions at our company, enhancing your operational expertise.
3. Post-purchase, we can deploy seasoned technicians to your country for installation and operational training, ensuring seamless integration.
4. Share your feedback or queries through a variety of channels, including phone, fax, mail, email, or via our website's customer message platform, and experience our commitment to unparalleled service.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if you encounter any issues with the main components of the machine (excluding consumables) during the warranty period, we'll swiftly replace or repair them at no extra cost.
Q2: I'm unsure which model best suits my needs. Can you help me decide?
A2:Certainly! Please provide the following information:
(1) The type of material you're working with.
(2) The thickness,diameter,length and shape of your material.
(3) The cutting requirements you need.
Q3: What are your payment terms?
A3:We offer flexible payment options such as TT, Western Union, PayPal, LC, and Cash, among others.
Q4: Do you provide CE certification and other necessary clearance documents?
A4:Absolutely, we have all the essential original documents. Post-shipment, we'll supply you with the CE document, packing list, commercial invoice, and sales contract to facilitate customs clearance.
Q5: What should I do if I'm unfamiliar with the machine operation or encounter issues after receiving it?
A5:Don't worry, we provide a comprehensive user manual with detailed images and a USB disk to guide you step-by-step. Plus, we offer monthly updates to keep you informed on any advancements.
Q6: How can I obtain a sample to verify the quality and results?
A6: Simply send us your sample, and we'll conduct a free test for you.
Q7: When can I expect to receive a quotation?
A7:Your inquiry will be addressed with expertise and precision within 12 hours.
