Animal Husbandary Farm Machinery Cow Manure Bedding Material Recycling System

Product Description

Product Introduction The bedding recovery system is an efficient system independently developed by our company to separate undigested fiber material from cow manure and use it as organic bedding material (Patent number: ZL2020 2 1129532.2).

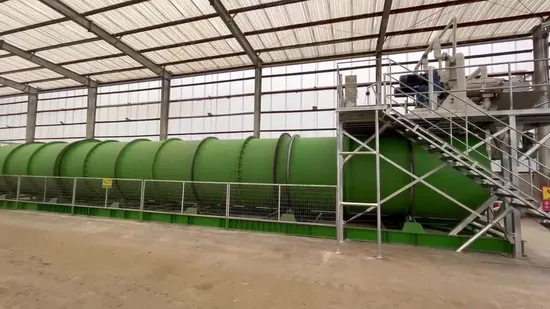

The system consists of an ultra dry separator and a set of drums. The system can produce fresh organic bedding material in the farm every day, with a production capacity of 50 cubic meters/day/set. The production and development of this system integrates international automation technology. The aerobic fermentation process is carried out at 60-75ºC, with a fermentation storage time of 36 hours. No external heat source is required. The biological process is monitored through temperature sensors and the airflow is adjustable. The organic bedding material free of charge using our own resources is a guarantee for the health of cows and the improvement of milk production.
System components:
Submersible cutting pumps and mixers, specialized separators for cow manure, screw conveyors, drum , dehumidifying fans, conveyor belts, etc.
Working principle:
The manure are pumped from the collection tank into a spiral extrusion separator, and the separated solid parts are transferred to the insulation drum through the screw conveyor for aerobic fermentation inside the drum over 24 hours. This process is carried out at a temperature of 60-75ºC, without the need for an external heat source. The biological process is monitored through temperature sensors and the airflow is adjustable.
The production of bedding materials in this system is divided into two steps:
The first step: separate crude dry material from manure. Coarse dry material mainly refers to undigested crude fiber residues in the manure, such as fibers in silage feed or hay. The separator separates the solid matter, reduces the liquid volume to the minimum, and continuously delivers the solid material to the insulation drum by a screw conveyor.
The second step: reduce the number of micro-organisms through the fermentation process. The rotation process of the insulation drum provides sufficient oxygen for the material, and the solid material undergoes high-strength aerobic drying at a temperature of 60-75ºC to reduce the number of bacteria. The number of mastitis pathogens in the processed solid material is greatly reduced, and this pathogen is often present in fresh cow manure. Multiple independent foreign laboratory tests have shown that no detectable bacterial cells have been found in the bedding material.
Types
WCDL-2 total 12 meters long,suitable for 2000 milking cow,daily output bedding material 30 m3.
WCDL-3 total 18 meters long,suitable for 3000 milking cow,daily output bedding material 50 m3.
Disadvantages of traditional bedding
Microorganism load level unclear
Causing rapid equipment wear and tear
Unsecured supply of bedding materials
The bedding material cannot be processed
High cost of bedding material storage
Causing an increase in solid content in the manure
Large labor cost
High purchasing cost
High manure handling cost
Advantages of bedding recovery system
High acceptance and clean body surface of cows
Improved comfort and health of cows
Reduced the risk of cow injuries
Reduced irritation to cow skin Reduced microbial load in the environment
Easy to use and handle
Economical and environmental protection
Continuous supply of raw materials
Stable quality
Reduced the cost of manure treatment

FAQ
Q1. Are you a factory or trading company?
A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales.Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?
A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.Q4: What can you by from our company?
A:Dairy farm design and diary farm equipment: such as rolling curtain, cow fan/ventilation fan, ceiling fan, cow headlock, cow free stall, cow brush,manure scraper, bedding recovery system, manure separator, cow mat,etc.
